Wood Grain Quick-Assembled Container Room

Contact us
PREV: Thermal Insulation and Moisture-Proof Container NEXT:No next article

Introduce

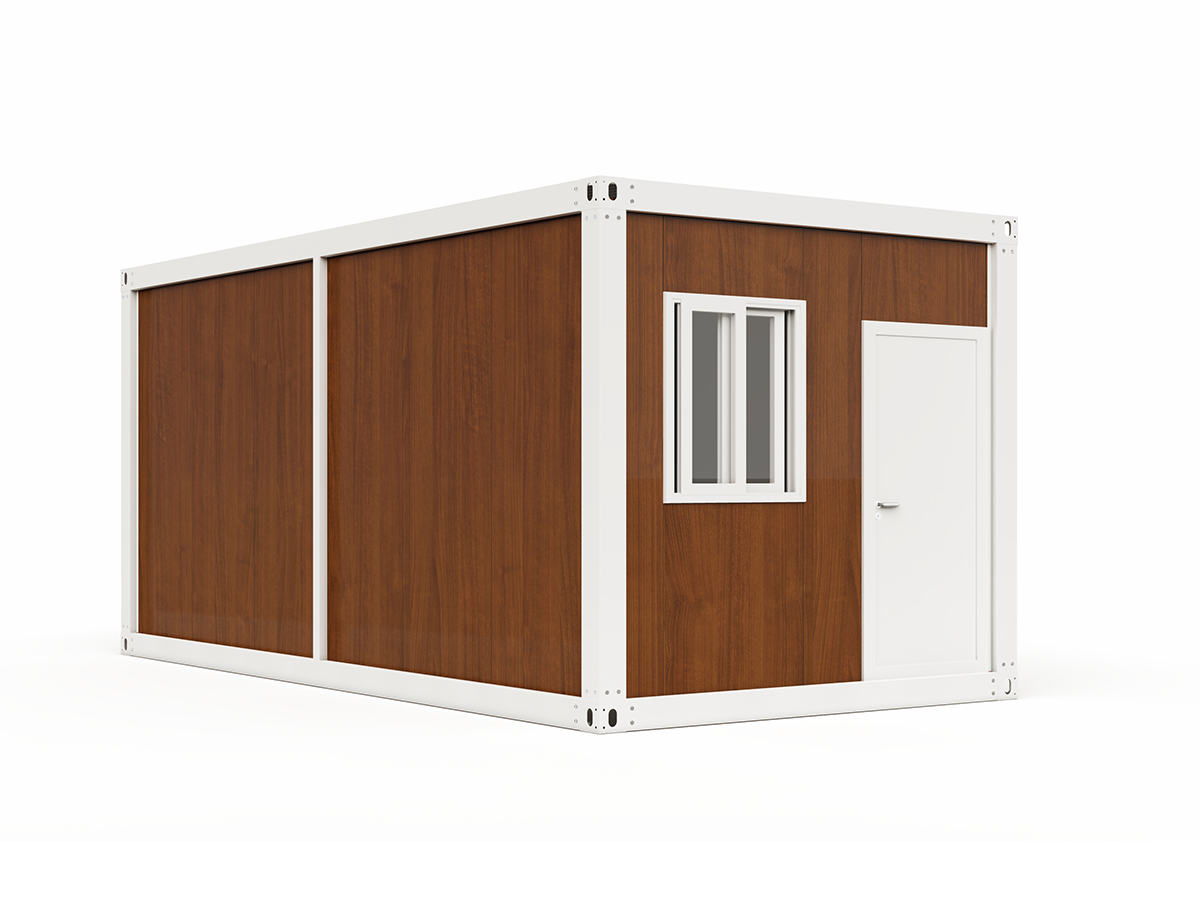

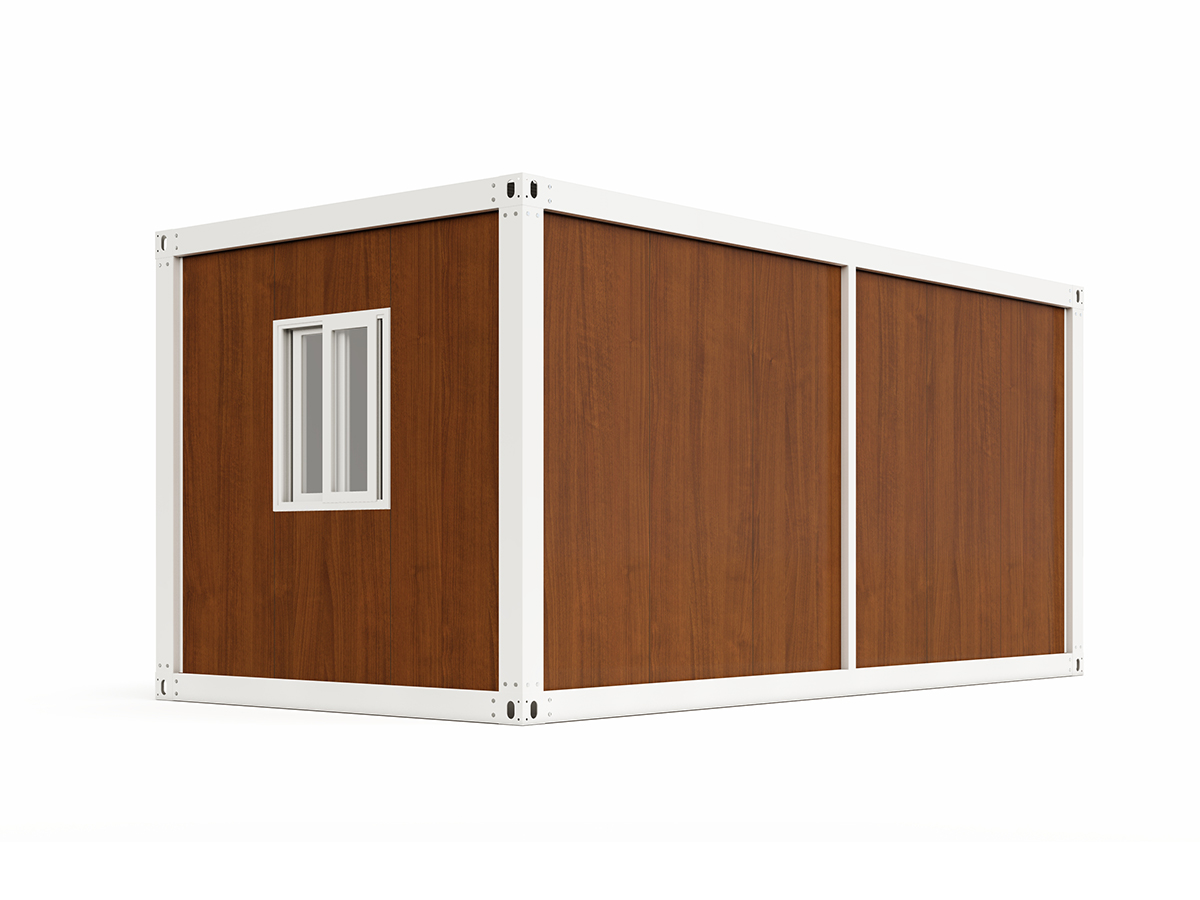

The wood-grain quick-assembly container house is a fast-assembly house that combines the advantages of container modular construction with the aesthetics of wood-grain decoration. It has the following characteristics:
1. Quick-assembly structure: using standardized container modules, quickly assembled through bolts, snaps or plug-in components, with a short construction time (usually completed in one day).
2. Wood-grain finish: The surface is covered with an imitation wood-grain coating that takes into account natural beauty and durability.
3. Modular design: Multiple container units can be flexibly spliced ​​to expand into multi-layer or combined spaces to adapt to different uses.
Air conditioning, bathroom, and solar panels can be customized to improve comfort. The wood-grain quick-assembly container house takes "rapid deployment + natural aesthetics" as its core, balancing functional and visual needs, and is especially suitable for projects that require short-term construction and pursue environmental integration. If you need to know more about technical parameters or cases, we can provide detailed solutions for specific application scenarios

Details

Standard configuration list of quick consolidation container
Parameters Thermal insulation performance λ=0.048W/m·K Wind resistance 0.60kN/㎡
Sound insulation performance Sound insulation ≥30dB Fire performance Level A
Waterproof There is organized drainage, with precipitation of 16mm/min and no leakage. Shock resistance Level 8
Ground live load 2.0kN/㎡ Roof live load 1.0kN/㎡
External dimensions: L5950mm*W3000mm* H2800mm Configuration Instructions quantity Remark
1 Main frame Top frame Top long beam: 2.3mm galvanized steel, top frame 160mm; 2
Top short beam: 2.3mm galvanized steel, top frame 160mm; 2
Bottom frame Bottom long beam: 2.3mm galvanized steel, top frame 160mm; 2
Bottom short beam: 2.3mm galvanized steel, top frame 160mm; 2
Column Column: 2.3mm galvanized steel 160mm*160mm; 4
Bolts: M12×35 high-strength bolts; 64
Corner 160mm*160mm, wall thickness 4.0mm; 8
2 Spray paint Electrostatic spraying technology, no fading for 7 years; 1 set
3 Platen slot Top long beam pressure plate groove: aluminum alloy profile thickness 1.0mm; 2
Top short beam pressure plate groove: aluminum alloy profile thickness 1.0mm; 2
4 Square tube system Chassis purlin 50*10 galvanized square tube, thickness 1.2mm; 9
Top purlin 50*50 galvanized square tube, thickness 1.6mm; 2
40*60 galvanized square tube, thickness 1.1mm; 1 piece 6.00m long
40*60 galvanized square tube, thickness 1.1mm; 6 1.88m Length
Door frame column 20*40 galvanized square tube, thickness 1.2mm; 1 piece
5 Rockwool wall panels The color steel composite board is 50mm thick, the double-sided thickness of the color steel board is 0.25mm, PE film is attached, the color is white and gray, and the double-sided ribs are pressed; the rock wool bulk density is 60kg/m³, and the combustion performance is Class A non-combustible. 1 set
6 Steel door Steel door set, size ≥W925mm×H2035mm, fireproof door lock; 1 fan
7 External windows Plastic steel series sliding window, size: W920mm×H1200mm×2; single glass with anti-theft tube; 2 fans
8 Indoor floor 18mm cement sanding board 5 pieces
9 Roof Tile The thickness of the color steel veneer is 0.45mm; 6 sheets
10 Roof insulation Glass wool felt, thickness 40mm, bulk density 14kg/m³, combustion performance is Class A non-combustible; 1 volume
11 Indoor ceiling tiles 0.23mm single-layer color steel plate-98 type corrugated tile; 6 sheets
12 Interior decoration corner Color steel inner corner line, 4 inner corners, 4 inner corners 1 set
13 Other auxiliary materials Standard includes all screws, structural adhesives, etc. 1 set
14 Indoor circuit (optional)
Please let me know if you need a circuit		 Light: LED dustproof light × 2 sets, 40W/set 0 sets Default surface mounted
Socket: 10A five-hole socket × 4, 16A air conditioning socket × 1
Switch: Single-button switch × 1
Distribution box: Surface mounted distribution box × 1
Wiring: Household line: 3*4 square, air conditioning socket: 3*2.5 square, five-hole socket: 3*1.5 square

3*5.95*2.8m Standard container house material list

No.

Item

Specification

unit

Qty

Length(m)

Notes

1

Wall

50mm Rock

wool sandwich

panels

pc

15

2.56

double-sided color steel thickness 0.3mm

pc

1

3.18

2

Main Frame

Top beam

pc

2

5.63





2.3mm cold-dip galvanized steel

pc

2

2.68

Bottom beam

pc

2

5.63

pc

2

2.68

Column

pc

4

2.48

Plate slot

pc

2

5.7

1.0mm Thickness

pc

2

2.8

Comer

connector

pc

8



4.0mm thickness

3

Galvanized steel tubes

Bottom purlin

pc

9

2.99

50*100mm Thickness 1.2mm

pc

1

2.55

20*40 Thickness 1.2mm

Top purlin

pc

2

2.8

50*50mm Thickness 1.5mm

pc

3

1.88

40*80mm Thickness 1.1mm

pc

6

1.88

40*60mm Thickness 1.1mm

4

Door frame tube



pc

1

2.55

20*40 Thickness 1.2mm

5

Electrostatic spraying



set

1



Painting on top&bottom beam &corner& column

6

Door



pc

1

925*2035

steel security door

7

Windows



pc

2

920*1200

white security window

8

Roof tiles



pc

6

2.95

0.45mm thickness

9

Ceiling tiles



pc

6

2.78

0.23mm Thickness

10

Floor



pc

5

2.8*1147

18mm thickness FR cement sanding board

11

Glass wool



Roll

1



40mm glass wool on top insulation

12

Comer fittings



set

1



Aluminium fitting fixed on the  corners

13

Hardware&fittings



set

1



including screwsglues
