Expandable Camping Holiday Container House Custom

Home / Product / Camping Container House / Expandable Camping Holiday Container House

Expandable Camping Holiday Container House

Contact us
PREV: Quick Assembly High-End Camping Container House NEXT:No next article

Introduce

The expandable camping holiday container house reshapes the camping experience with modular design. The single box is easy to transport and can be equipped with furniture, integrated bathroom and mini kitchen to realize the "move-in" wild luxury camping. Its high-strength steel frame is earthquake-resistant to level 9 and windproof to level 12, with A-level fireproof body and constant indoor temperature under -30℃ to 50℃ environment; modular expansion supports horizontal splicing of terraces, vertical stacking of viewing lofts, or connecting multiple boxes to create a family camping community to meet the needs of multiple people. Innovative integration of off-grid ecological technology - folding solar roof power generation, rainwater filtration system water supply, gray water circulation device waste removal, to achieve sustainable camping with zero external energy. The exterior can be customized with panoramic floor-to-ceiling windows, seamlessly integrated with the natural landscape; the interior provides log style, minimalist style and other styles. The box can be disassembled and reused without loss. From family weekend vacations, high-end camp hotels to wilderness scientific research stations, the expansion box redefines the modern camping method with "rapid deployment + all-terrain adaptability + eco-friendly".

Details

Specification of 20" ft expandable container house
Information Expand Size（mm）L*W*H L5900*W6300*H2500






Inner Size（mm）L*W*H L5440*W6140*H2240
Folding Size（mm）L*W*H L5900*W2200*H2500
Weight（KG） 2800
Materials Bottom Beam  Galvanized tube100*100*2.0MM Q235
Galvanized tube80*40*1.5MM Q235
Galvanized tube150*100*2.0MM Q235
Galvanized tube150*150*2.0MM Q235
Top Beam Galvanized tube150*100*2.0MM Q235
Galvanized tube100*50*2.0MM Q235
Galvanized tube80*80*2.0MM Q235
Galvanized tube60*40*2.0MM Q235
Column Galvanized tube150*150*2.0MM Q235
Sub Frame p80*50*1.2MM     Q235
Galvanized tube80*40*1.5MM Q235
Galvanized tube80*60*1.5MM Q235
Galvanized tube120*60*1.5MM Q235
Galvanized tube60*40*2.0MM Q235
Hinge Galvanized Q235
Floor Middle Floor 18mm cement sanding board
Both sides Floor 15mm bamboo plywood
PVC Floor 16mm PVC Floor
Wall panel Wall panel  75mm sandwich panel, color roll double-sided 0.25 (sandwich material is rock wool 80kg/m³, EPS, polyurethane optional)
standard sandwich material is 10kg/m³ EPS
Inner wall panel 50mm sandwich panel, color steel base plate double-sided 0.25. Insulation material is the same as above
Top and side panel 50mm sandwich panel, color steel base plate double-sided 0.25. Insulation material is the same as above
Electric System Specification 1. Main wire 6 square meters, air conditioning wire 4 square meters, socket wire 2.5 square meters, lamp wire 1.5 square meters (can be customized)
2. Circuit breaker system, 2P32 leakage protector 1 piece/2P32A air switch 2 pieces.
3. LED light*6pieces
4. Socket; standard three-hole socket (socket standard can be configured according to customer requirements)
Windows and Doors Outside door Steel door(can be customized)
Inner door 50 socket steel door
Windows Plastic steel sliding window(can be customized) 930*900*6个；500*500*1个

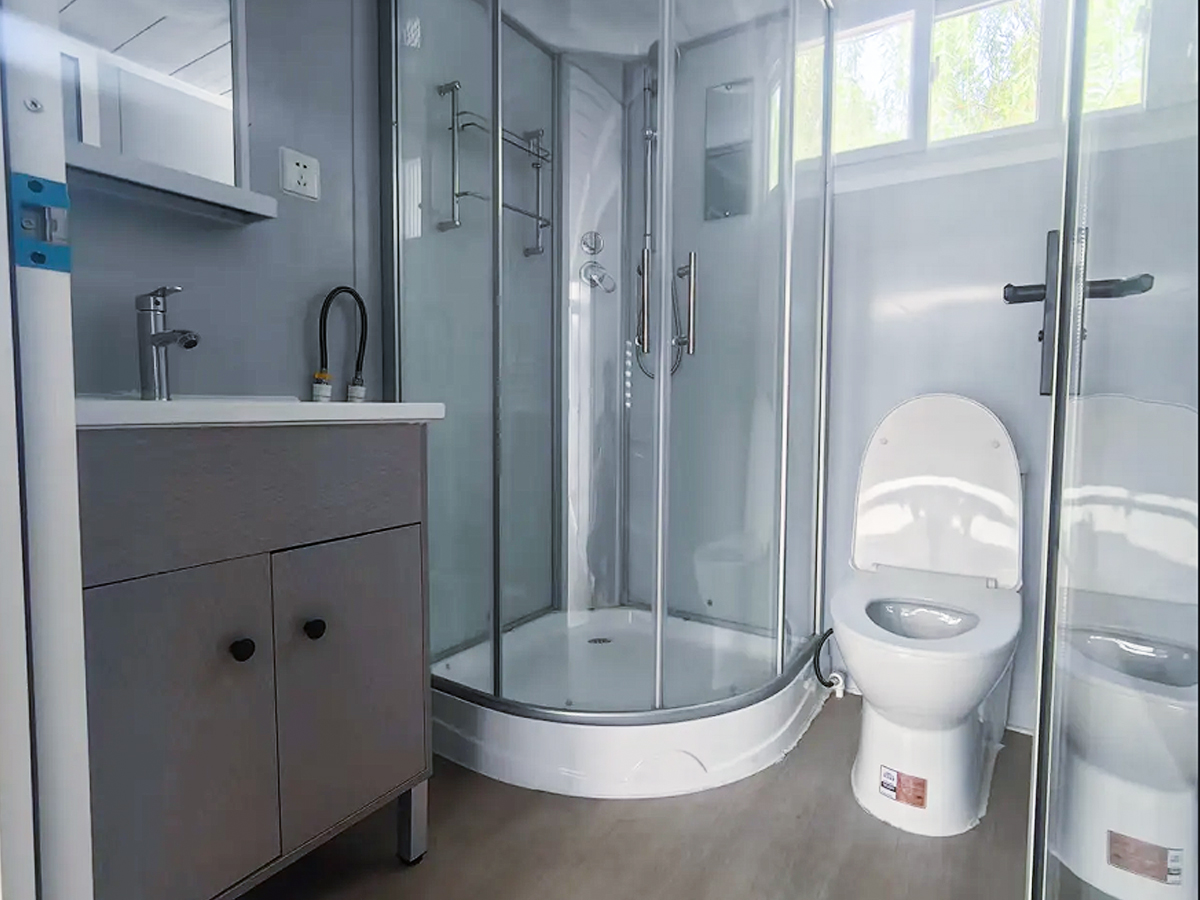

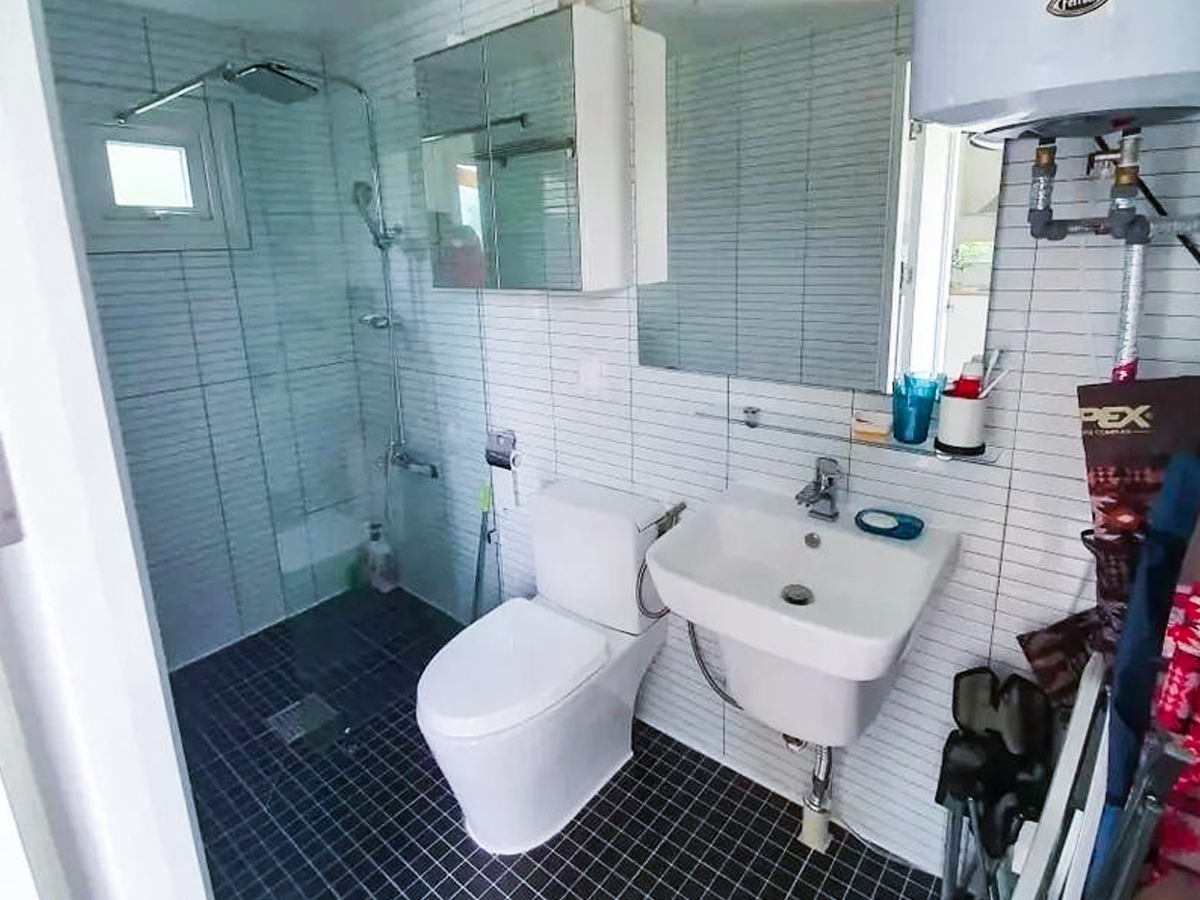

Bathroom fittings Material  Toilet door glass door, integrated shower (sliding door 8mm tempered glass), toilet, wash basin, shower head
Apartment Type
Apartment Type One bedroom, one living room, one kitchen, and one bathroom Two bedrooms, one living room, one kitchen and one bathroom Three bedrooms, one living room, one kitchen and one bathroom
