Introduce

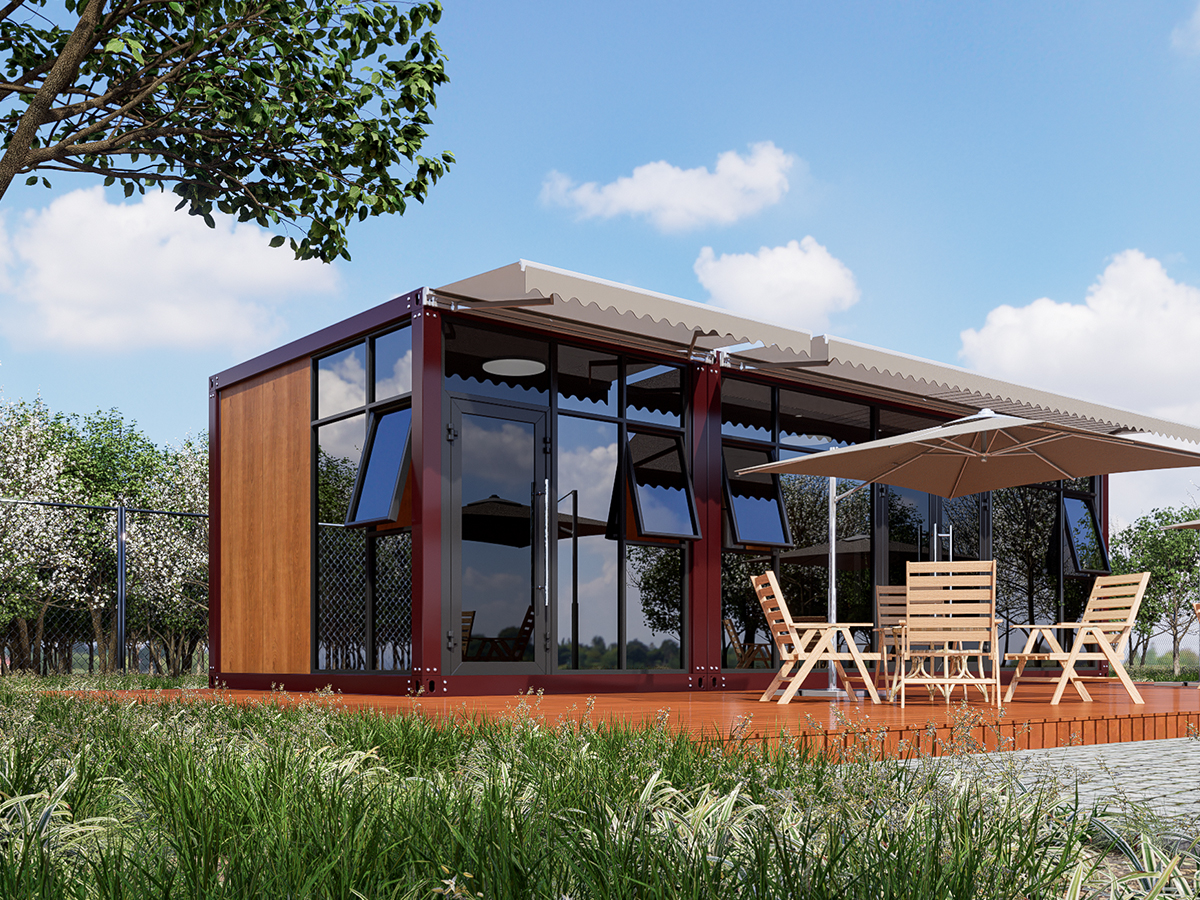

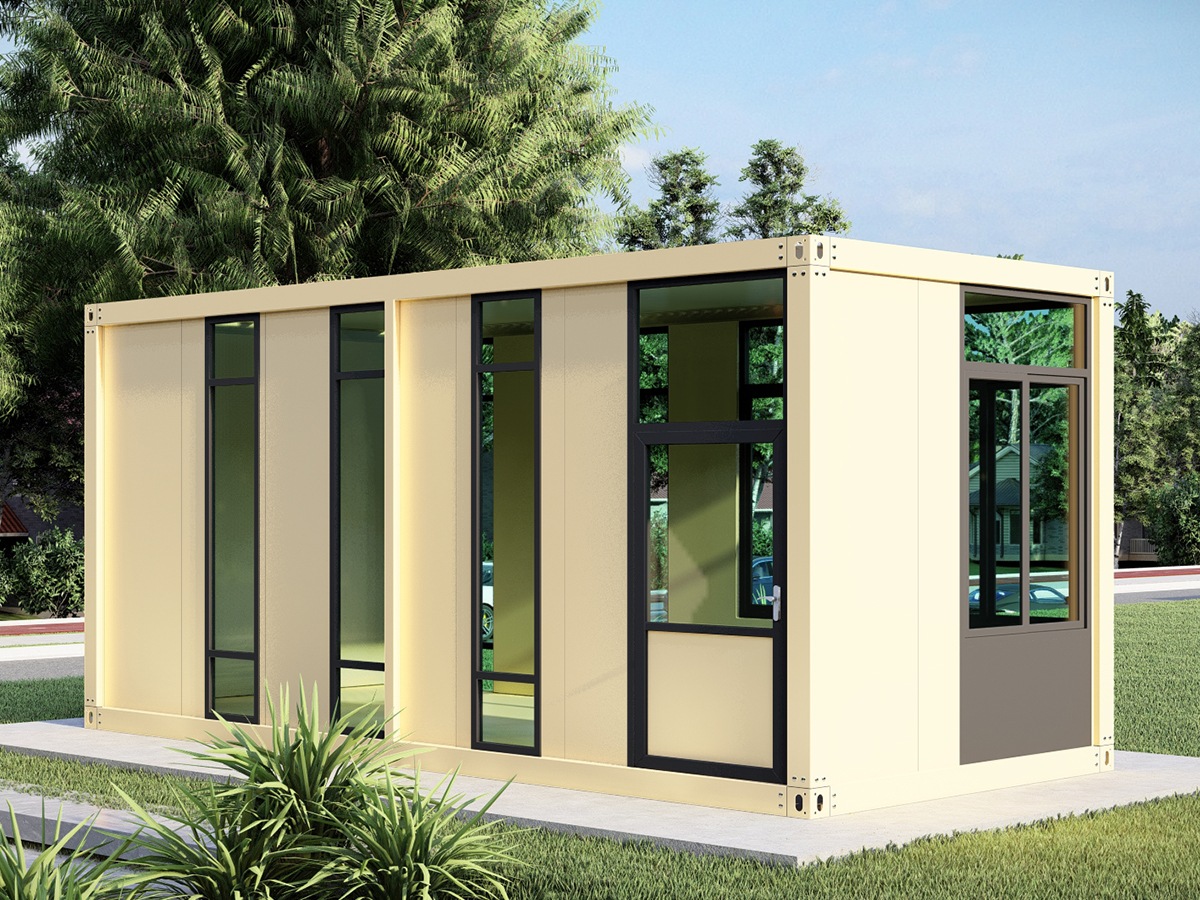

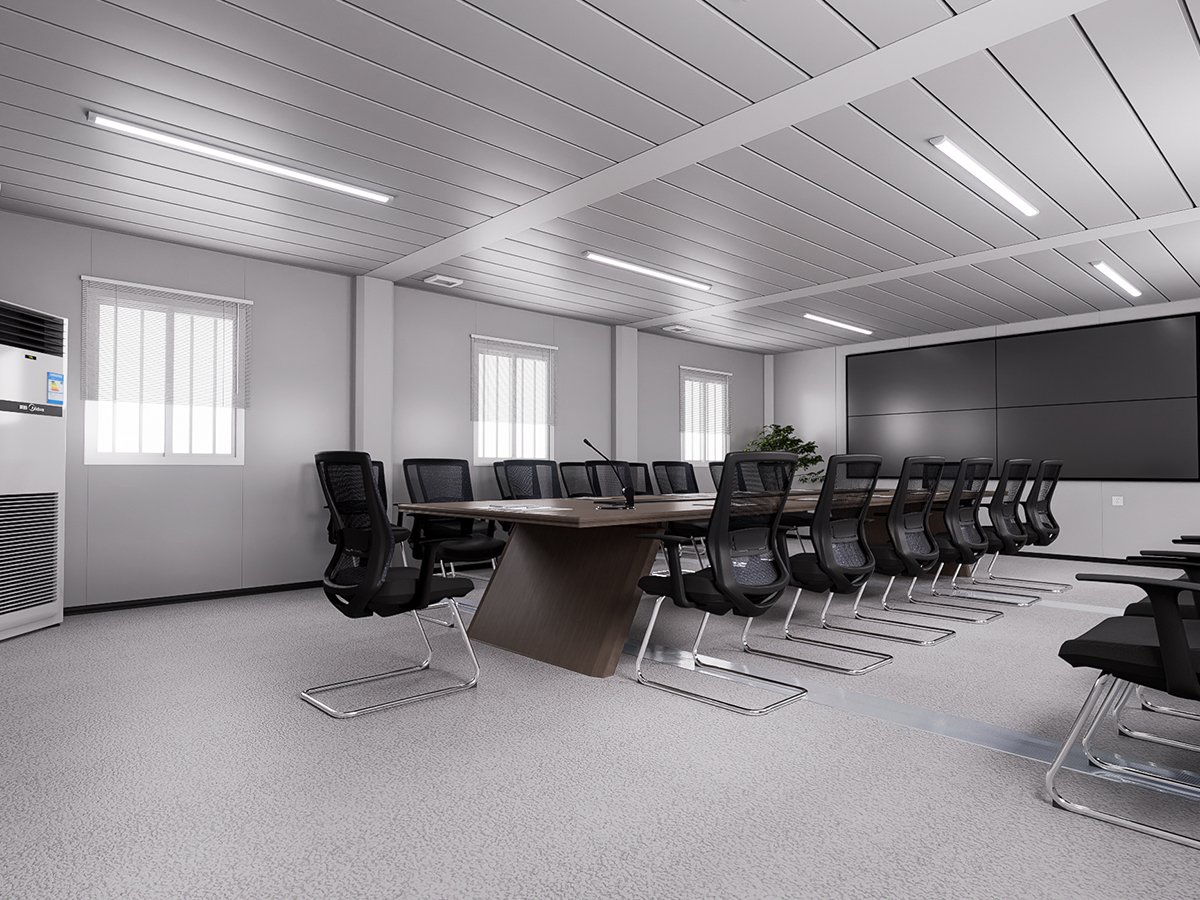

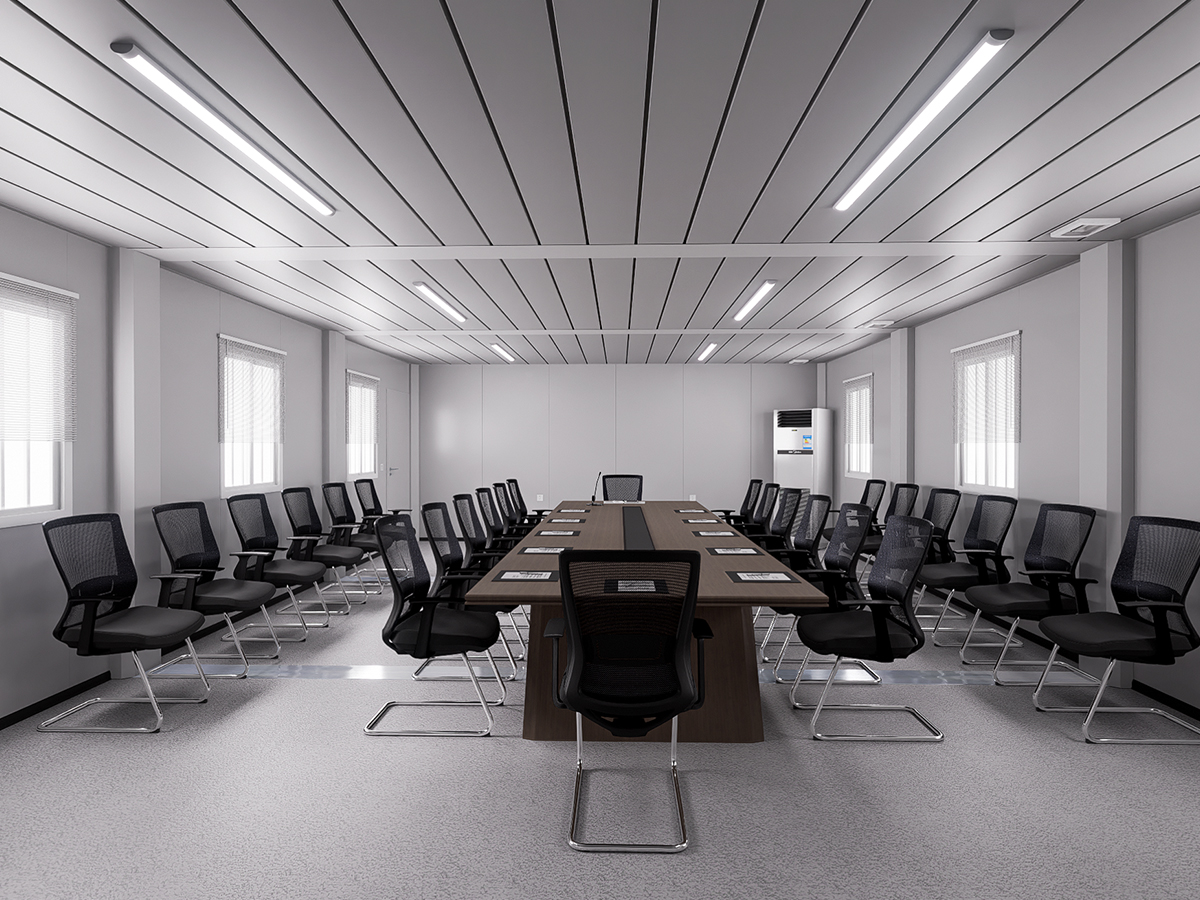

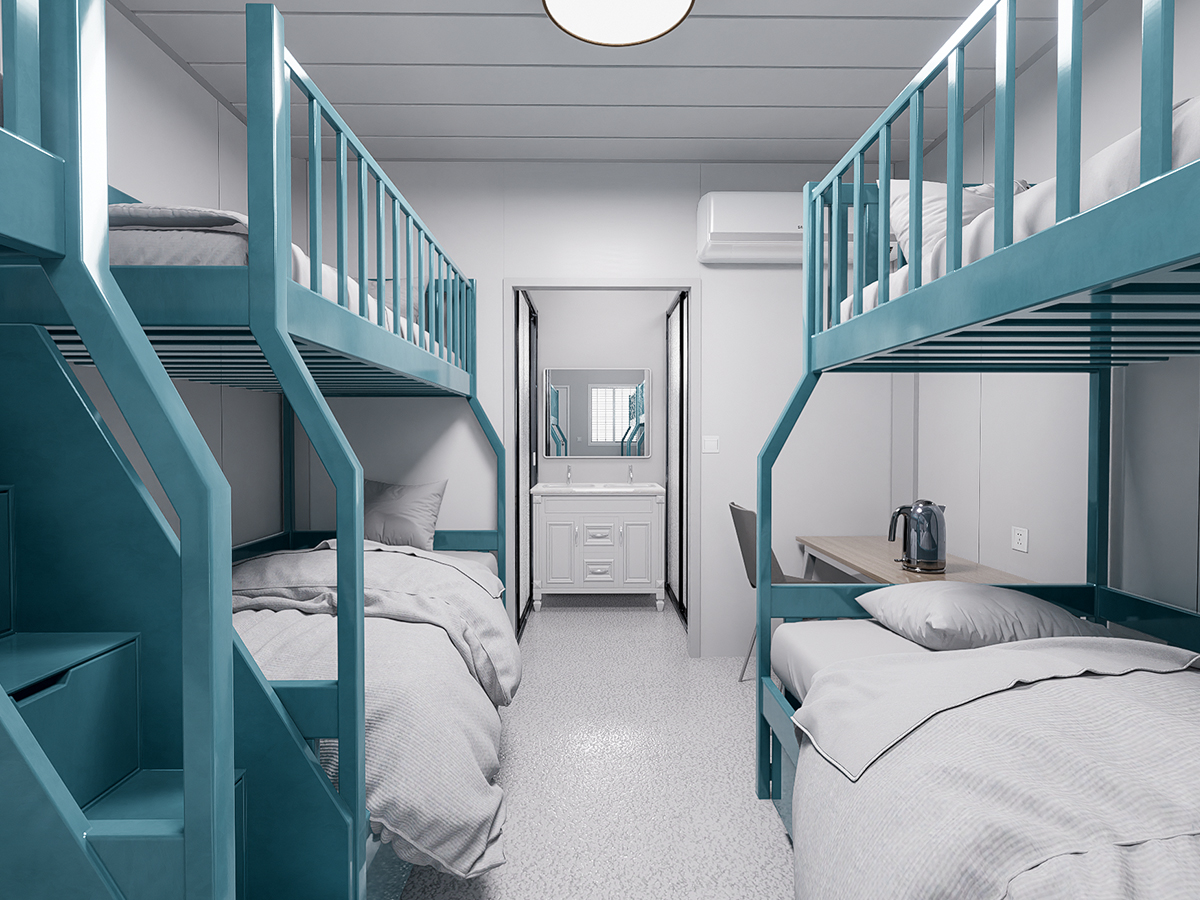

Modular design prefabricated container houses are based on modular design, breaking the limitations of traditional architectural forms and providing users with a new experience of "free customization + unlimited stacking". Its standardized module units support personalized deep transformation, and can be adjusted on demand from appearance to function: the appearance can be customized in modern minimalist, industrial style or pastoral style, and the wall color, door and window layout can be freely matched; the internal space adopts a non-load-bearing wall design, and users can flexibly divide the living, office or commercial areas, and integrate smart home, photovoltaic power generation and other systems to achieve functional exclusive customization. Whether it is to build a single-family villa, duplex loft, or creative exhibition hall, theme homestay, it can accurately match the use scenario requirements.

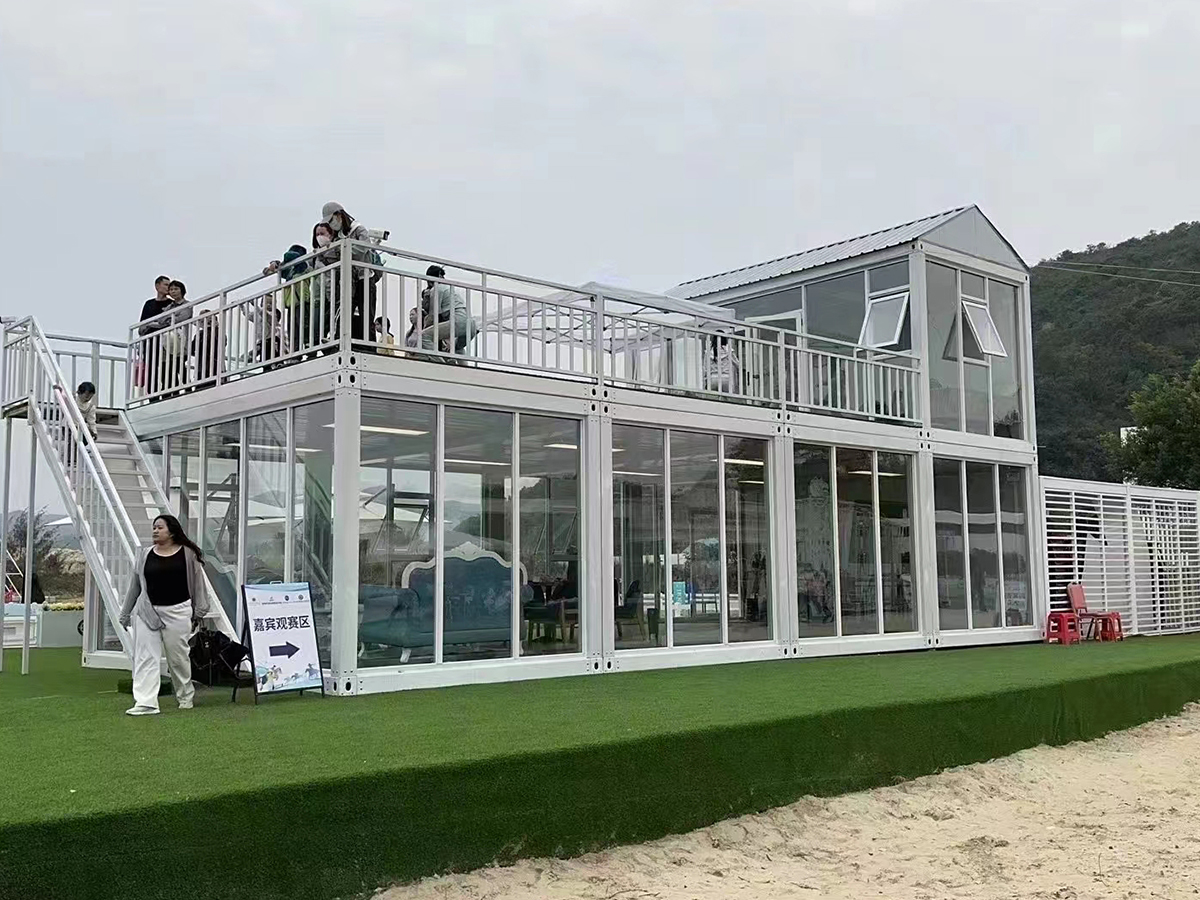

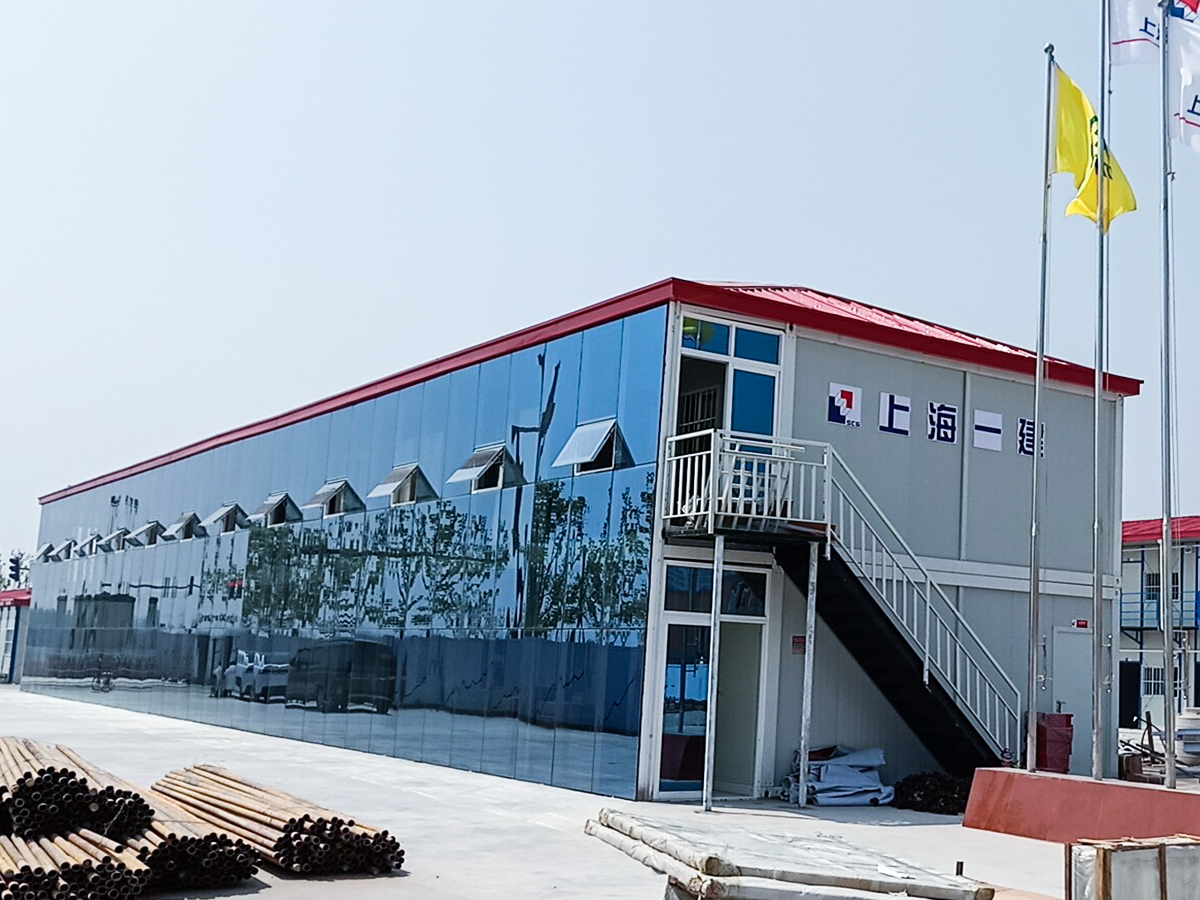

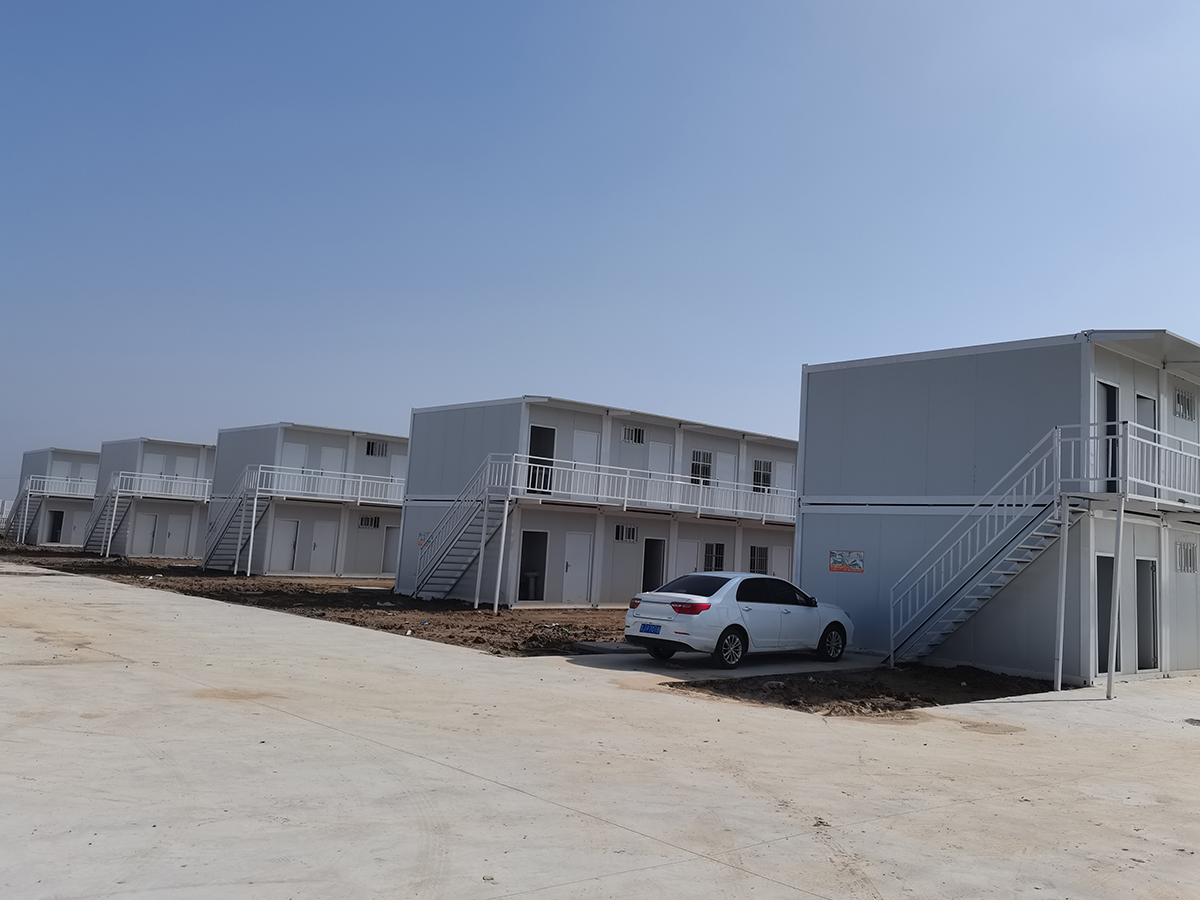

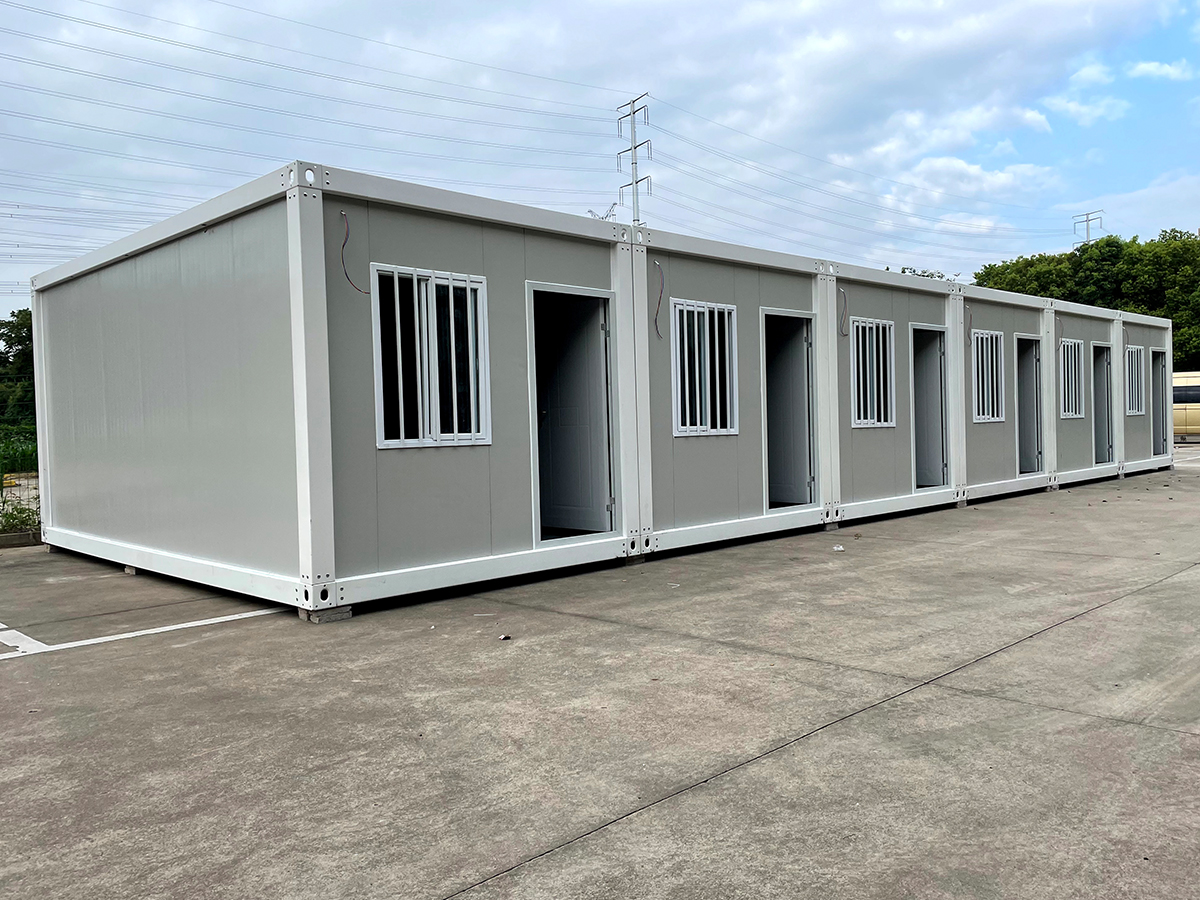

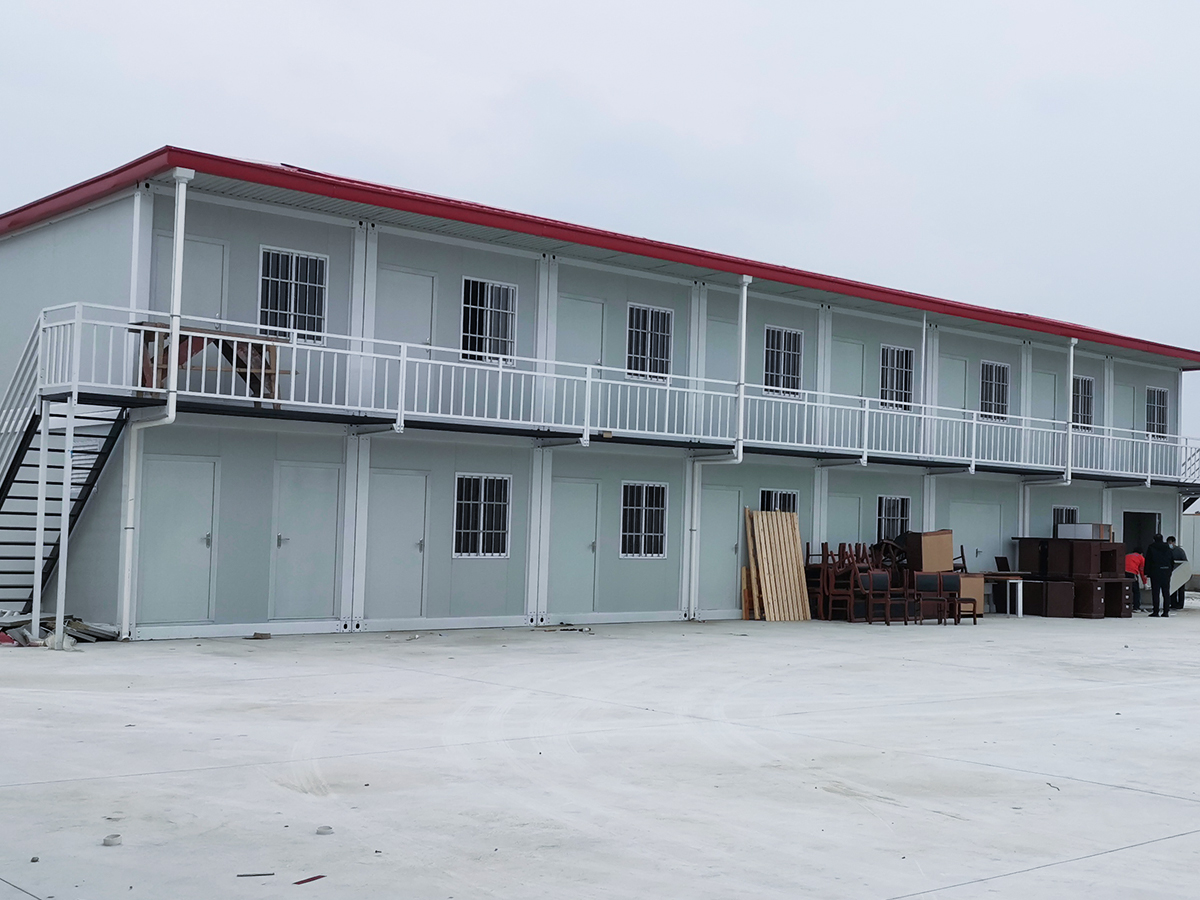

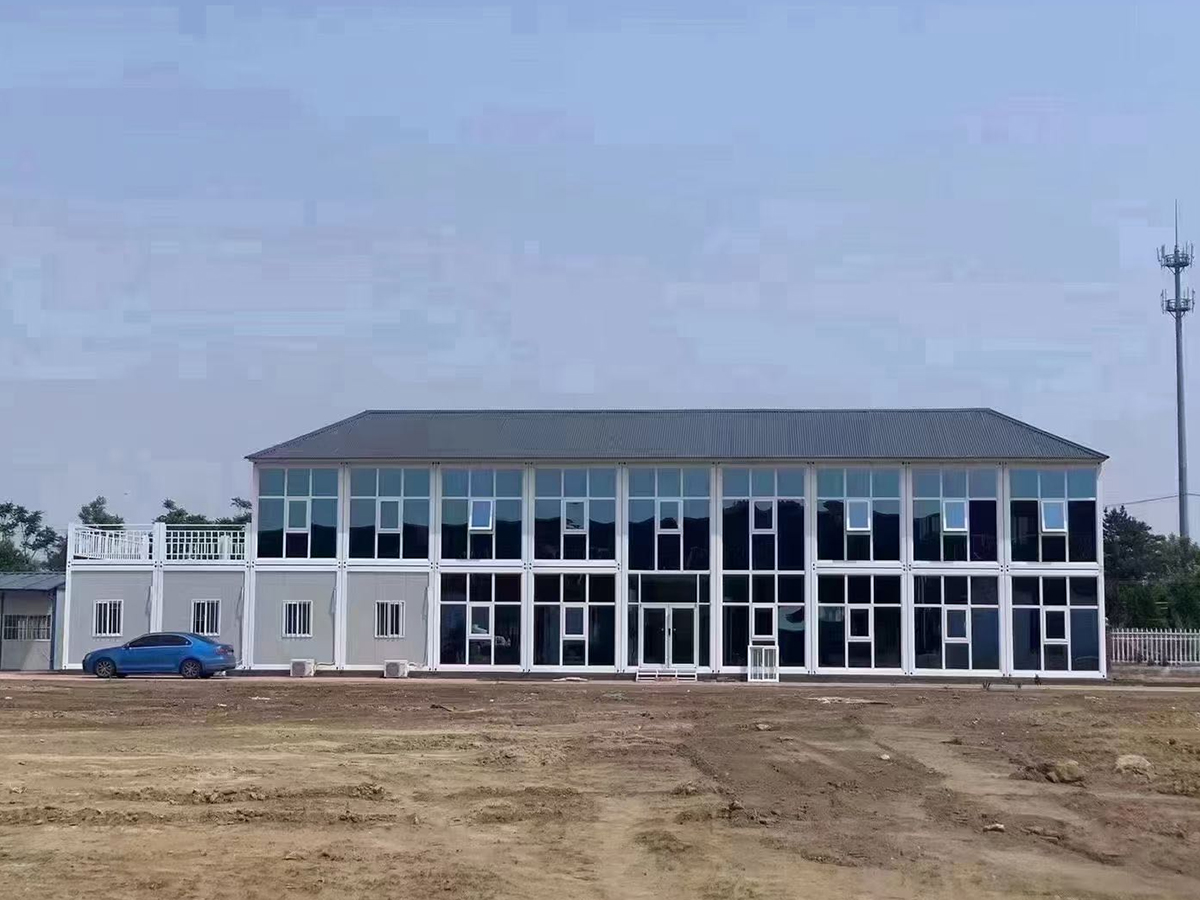

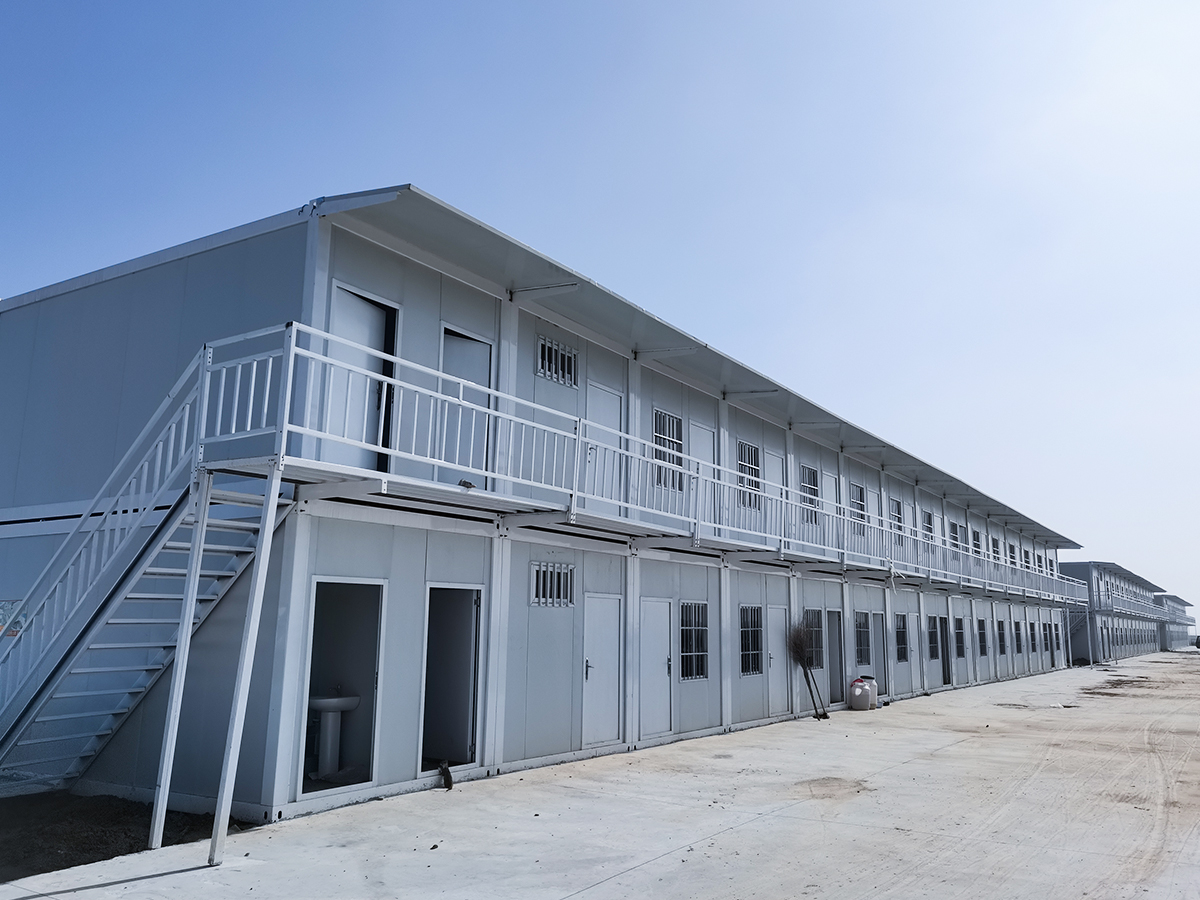

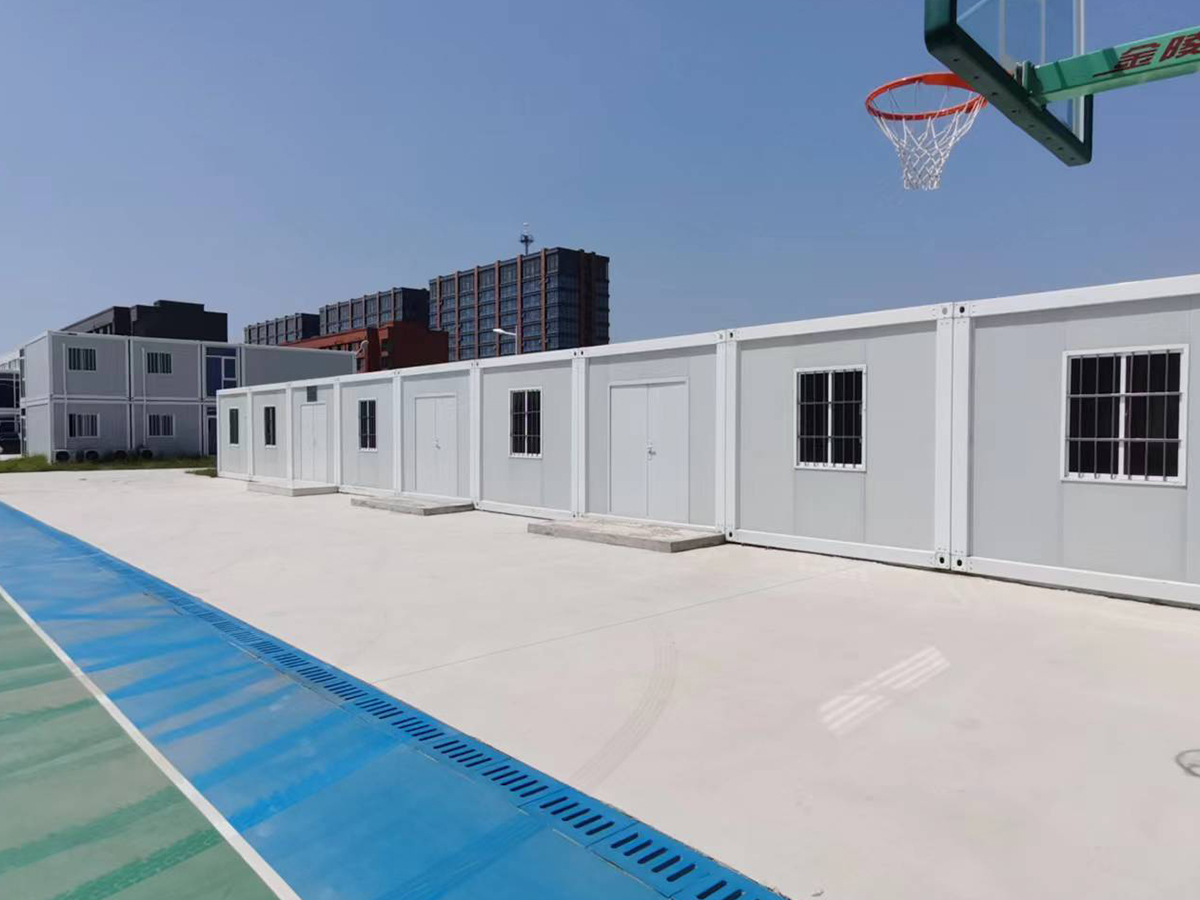

Even more groundbreaking is its unique vertical stacking and horizontal expansion capabilities. The module unit is firmly combined through high-strength connectors, and can be freely stacked like a "building magic cube", and a single-layer space can be transformed into a multi-layer building in seconds to meet the dynamic needs of family population growth or business expansion. For example, the basic module can be used as a single-story residence, and then quickly expanded into a two-story villa by stacking on top; in commercial scenarios, 10 modules can be horizontally spliced to form an open exhibition hall, which can be converted into an independent store after disassembly and reorganization. This "growing building" feature enables the house to be continuously upgraded as user needs change, greatly reducing the cost of renovation and relocation.
The quick-assembly integrated house, with its customizable and extensible intelligent construction system, provides modern residential and commercial spaces with an innovative choice that combines individual expression and sustainability, redefining the way architecture and life interact.
Details
Standard configuration list of quick consolidation container | |||||
Parameters | Thermal insulation performance | λ=0.048W/m·K | Wind resistance | 0.60kN/m² | |
Sound insulation performance | Sound insulation ≥30dB | Fire performance | Level A | ||
Waterproof | There is organized drainage, with precipitation of 16mm/min and no leakage. | Shock resistance | Level 8 | ||
Ground live load | 2.0kN/㎡ | Roof live load | 1.0kN/㎡ | ||

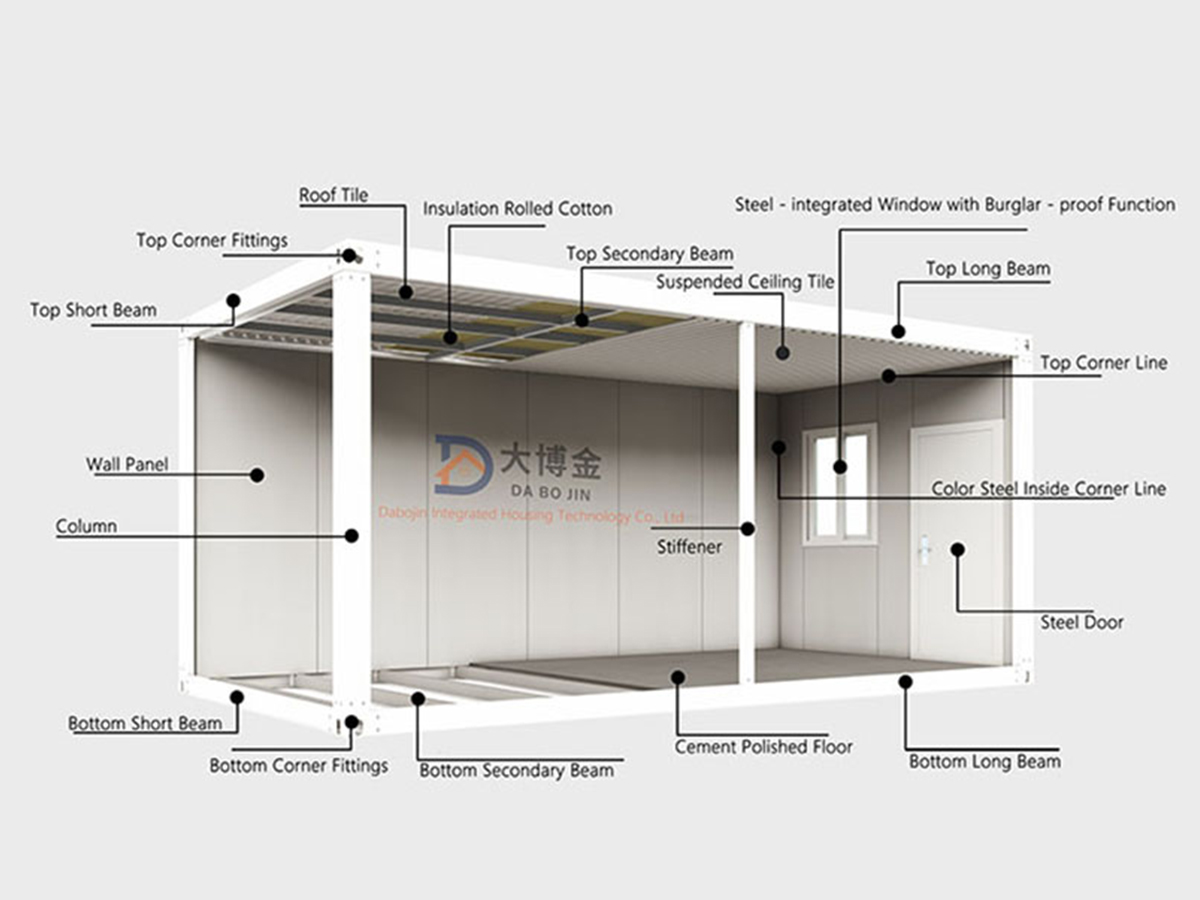

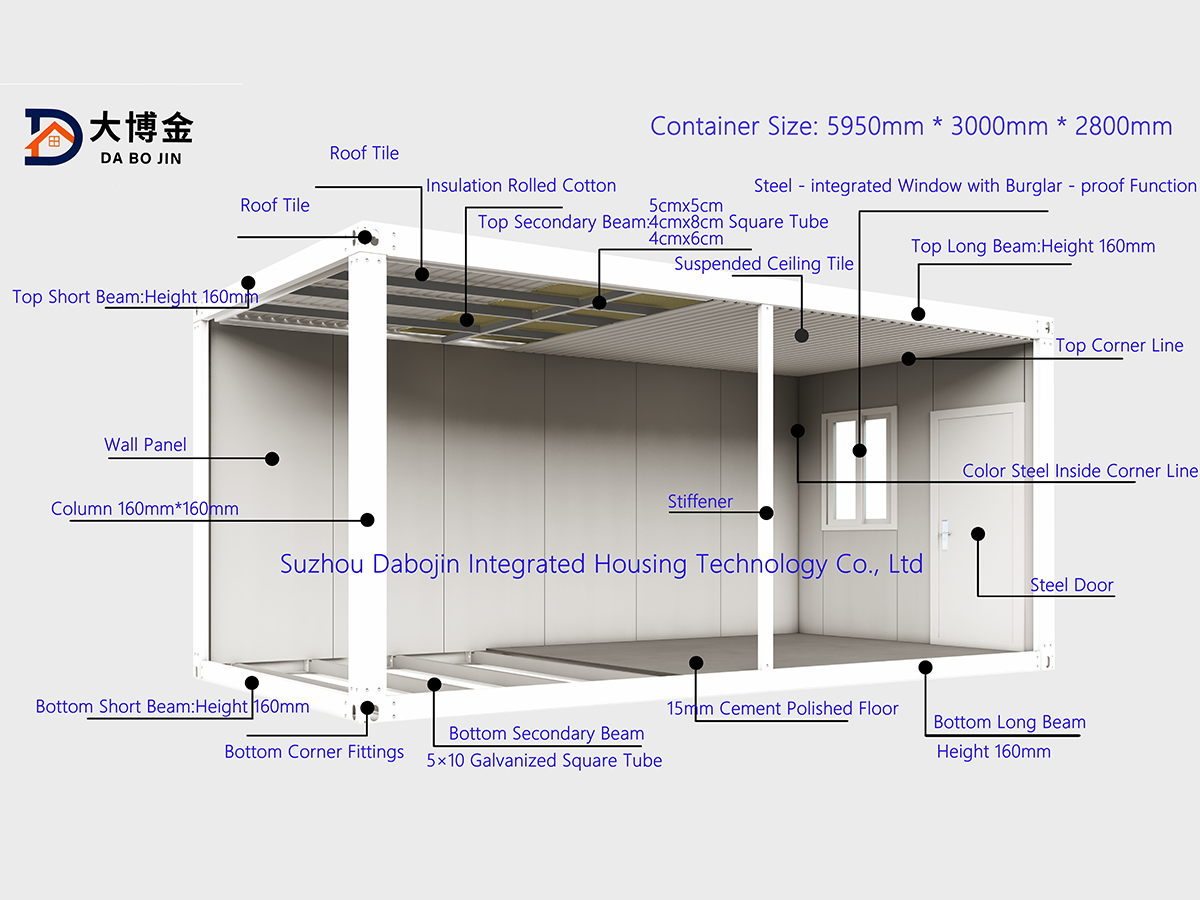

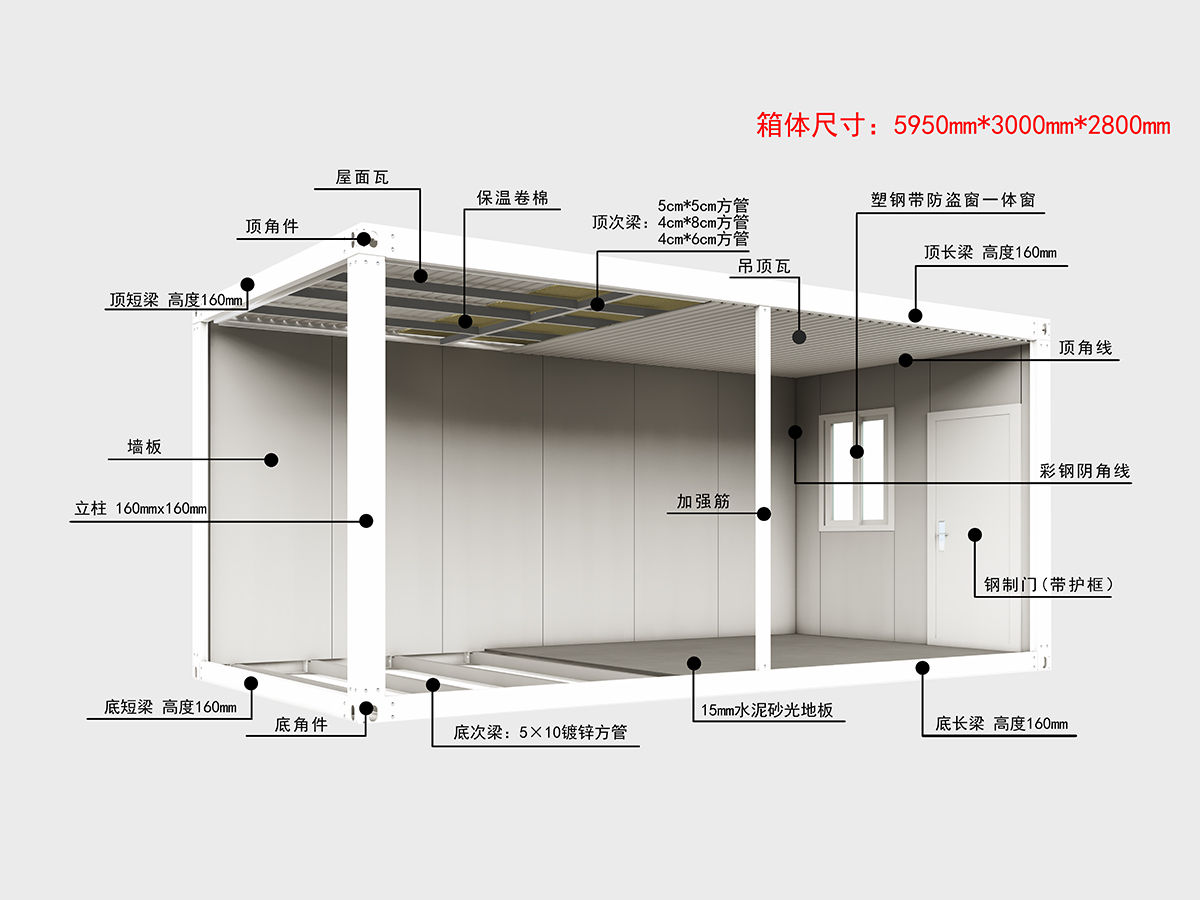

External dimensions: L5950mm*W3000mm*H3000mm | Configuration Instructions | quantity | Remark | ||
1 | Main frame | Top frame | Top long beam: 2.3mm galvanized steel, top frame 160mm; | 2 | |
Top short beam: 2.3mm galvanized steel, top frame 160mm; | 2 | ||||
Bottom frame | Bottom long beam: 2.3mm galvanized steel, top frame 160mm; | 2 | |||
Bottom short beam: 2.3mm galvanized steel, top frame 160mm; | 2 | ||||
Column | Column: 2.3mm galvanized steel 160mm*160mm; | 4 | |||
Bolts: M12×35 high-strength bolts; | 64 | ||||
Corner | 160mm*160mm, wall thickness 4.0mm; | 8 | |||
2 | Spray paint | Electrostatic spraying technology, no fading for 7 years; | 1 set | ||
3 | Platen slot | Top long beam pressure plate groove: aluminum alloy profile thickness 1.0mm; | 2 | ||
Top short beam pressure plate groove: aluminum alloy profile thickness 1.0mm; | 2 | ||||
4 | Square tube system | Chassis purlin | 50*10 galvanized square tube, thickness 1.2mm; | 9 | |
Top purlin | 50*50 galvanized square tube, thickness 1.6mm; | 2 | |||
40*60 galvanized square tube, thickness 1.1mm; | 1 piece | 6.00m long | |||
40*60 galvanized square tube, thickness 1.1mm; | 6 | 1.88m Length | |||
Door frame column | 20*40 galvanized square tube, thickness 1.2mm; | 1 piece | |||
5 | Rockwool wall panels | The color steel composite board is 50mm thick, the double-sided thickness of the color steel board is 0.25mm, PE film is attached, the color is white and gray, and the double-sided ribs are pressed; the rock wool bulk density is 60kg/m³, and the combustion performance is Class A non-combustible. | 1 set | ||
6 | Steel door | Steel door set, size ≥W925mm×H2035mm, fireproof door lock; | 1 fan | ||
7 | External windows | Plastic steel series sliding window, size: W920mm×H1200mm×2; single glass with anti-theft tube; | 2 fans | ||
8 | Indoor floor | 18mm cement sanding board | 5 pieces | ||
9 | Roof Tile | The thickness of the color steel veneer is 0.45mm; | 6 sheets | ||
10 | Roof insulation | Glass wool felt, thickness 40mm, bulk density 14kg/m³, combustion performance is Class A non-combustible; | 1 volume | ||
11 | Indoor ceiling tiles | 0.23mm single-layer color steel plate-98 type corrugated tile; | 6 sheets | ||
12 | Interior decoration corner | Color steel inner corner line, 4 inner corners, 4 inner corners | 1 set | ||
13 | Other auxiliary materials | Standard includes all screws, structural adhesives, etc. | 1 set | ||
14 | Indoor circuit (optional) Please let me know if you need a circuit |
Light: LED dustproof light × 2 sets, 40W/set | 0 sets | Default surface mounted | |
Socket: 10A five-hole socket × 4, 16A air conditioning socket × 1 | |||||
Switch: Single-button switch × 1 | |||||
Distribution box: Surface mounted distribution box × 1 | |||||
Wiring: Household line: 3*4 square, air conditioning socket: 3*2.5 square, five-hole socket: 3*1.5 square |
3*5.95*2.8m Standard container house material list |
||||||
No. |
Item |
Specification |
unit |
Qty |
Length(m) |
Notes |
1 |
Wall |
50mm Rock wool sandwich panels |
pc |
15 |
2.56 |
double-sided color steel thickness 0.3mm |
pc |
1 |
3.18 |
||||
2 |
Main Frame |
Top beam |
pc |
2 |
5.63 |
2.3mm cold-dip galvanized steel |
pc |
2 |
2.68 |
||||
Bottom beam |
pc |
2 |
5.63 |
|||
pc |
2 |
2.68 |
||||
Column |
pc |
4 |
2.48 |
|||
Plate slot |
pc |
2 |
5.7 |
1.0mm Thickness |
||
pc |
2 |
2.8 |
||||
Comer connector |
pc |
8 |
|
4.0mm thickness |
||
3 |
Galvanized steel tubes |
Bottom purlin |
pc |
9 |
2.99 |
50*100mm Thickness 1.2mm |
pc |
1 |
2.55 |
20*40 Thickness 1.2mm |
|||
Top purlin |
pc |
2 |
2.8 |
50*50mm Thickness 1.5mm |
||
pc |
3 |
1.88 |
40*80mm Thickness 1.1mm |
|||
pc |
6 |
1.88 |
40*60mm Thickness 1.1mm |
|||
4 |
Door frame tube |
|
pc |
1 |
2.55 |
20*40 Thickness 1.2mm |
5 |
Electrostatic spraying |
|
set |
1 |
|
Painting on top&bottom beam &corner& column |
6 |
Door |
|
pc |
1 |
925*2035 |
steel security door |
7 |
Windows |
|
pc |
2 |
920*1200 |
white security window |
8 |
Roof tiles |
|
pc |
6 |
2.95 |
0.45mm thickness |
9 |
Ceiling tiles |
|
pc |
6 |
2.78 |
0.23mm Thickness |
10 |
Floor |
|
pc |
5 |
2.8*1147 |
18mm thickness FR cement sanding board |
11 |
Glass wool |
|
Roll |
1 |
|
40mm glass wool on top insulation |
12 |
Comer fittings |
|
set |
1 |
|
Aluminium fitting fixed on the corners |
13 |
Hardware&fittings |
|
set |
1 |
|
including screwsglues |
