Introduce

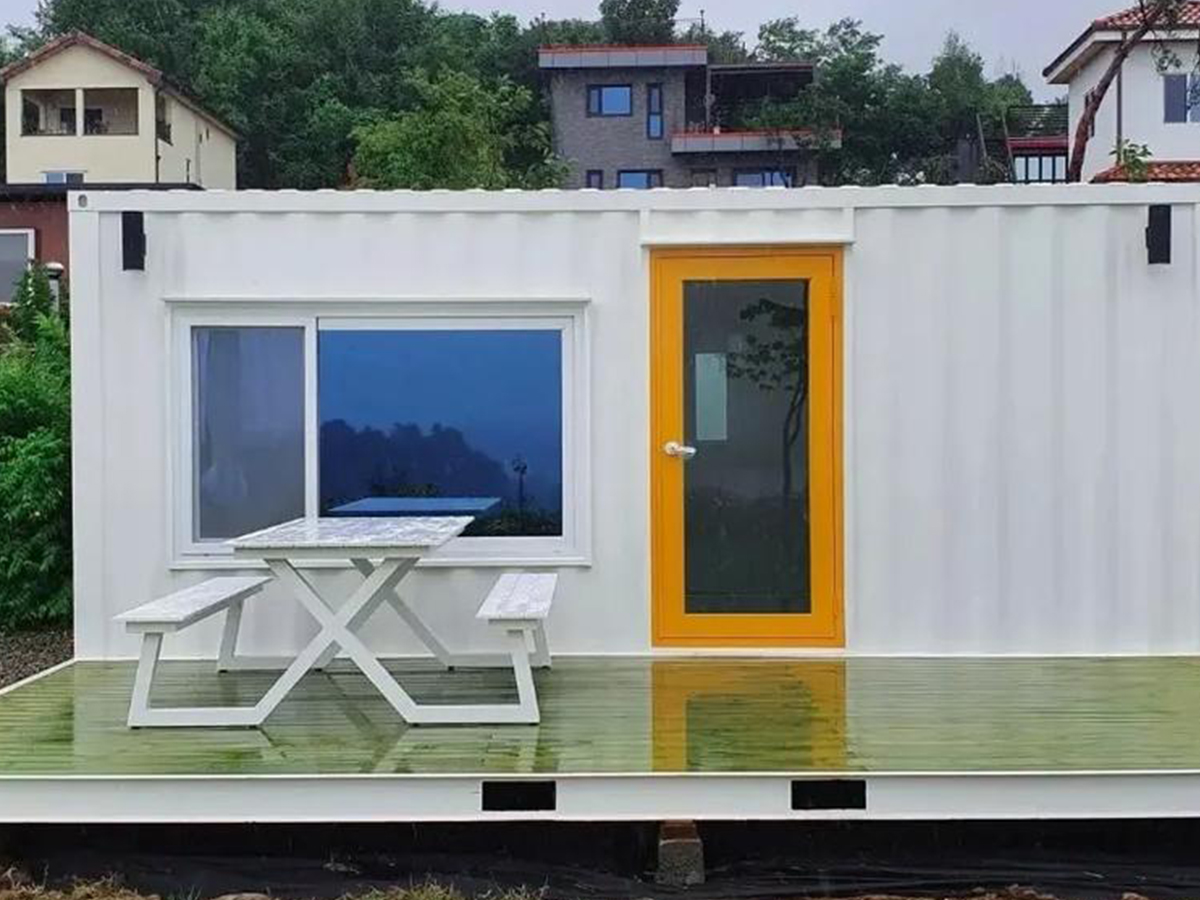

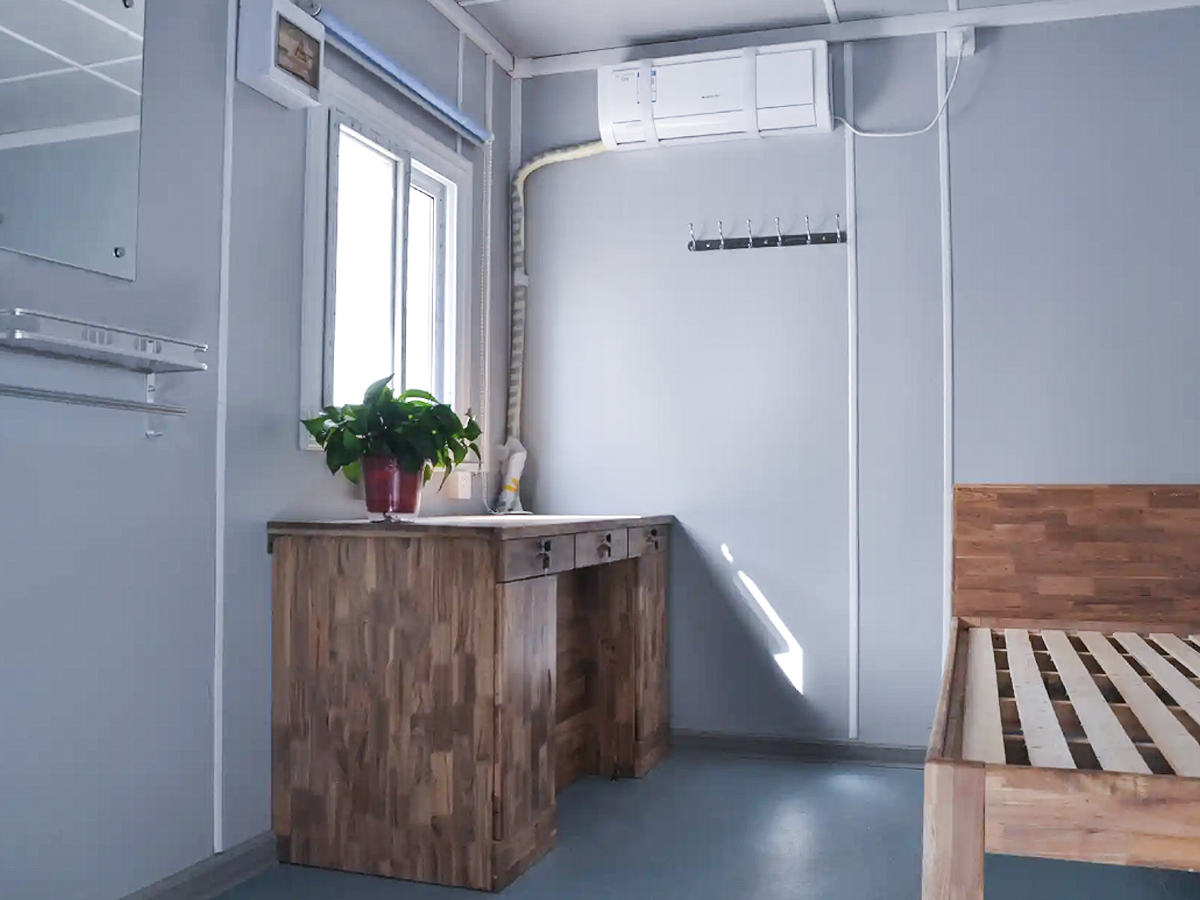

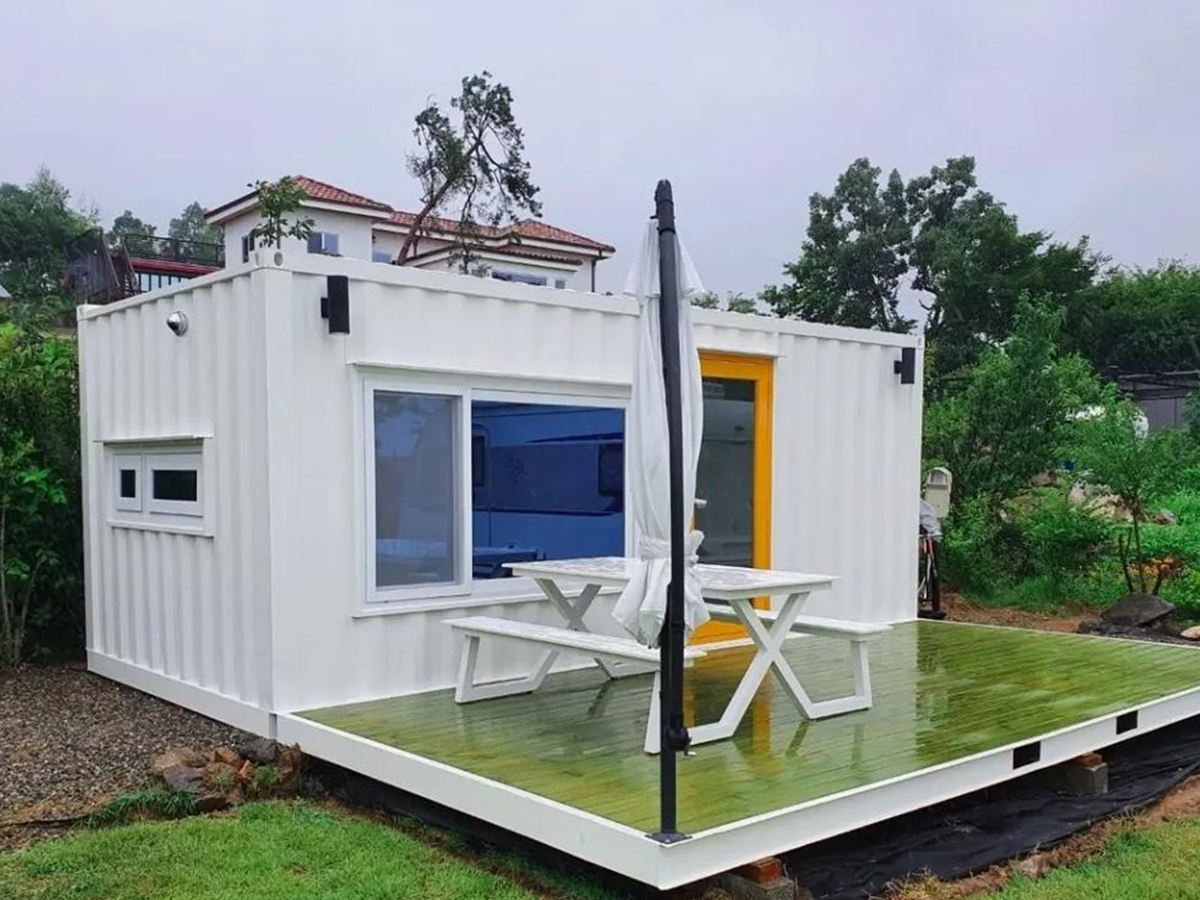

The quick assembly high-end camping container house is centered on "modularized rapid assembly + full-scene adaptation" to create a safe, comfortable, and ready-to-move-in mobile home for camping enthusiasts. It uses a lightweight, high-strength aluminum alloy frame and environmentally friendly composite panels. A single box can be assembled by two people within 30 minutes without professional tools. When unfolded, it can get a 15-25㎡ space. It is equipped with a folding bed, storage cabinet, and simple kitchen area. It supports solar power supply and rainwater collection system to achieve off-grid life in the wild. The sealed design of the box is rainproof and moisture-proof (waterproof grade IP54), with double-layer insulation walls and breathable skylights. The indoor temperature and humidity are balanced under the environment of -15℃ to 40℃; the wind resistance level 8 and earthquake resistance level 7 are stable and safe, and can withstand severe outdoor weather. The exterior supports camouflage painting or log veneer, which perfectly integrates into the natural landscape; the interior can be customized with a starry sky dome and projection screen to upgrade the camping entertainment experience. After disassembly, the volume is reduced to 1/3, which can be easily loaded into a pickup truck or SUV, and the number of reuses exceeds 200 times, taking into account both environmental protection and economy. Whether it is a family weekend camping, a long-distance self-driving trip, or an outdoor photography base, the quick-assembled camping house redefines the quality of outdoor life with its "ultra-fast construction, smart and comfortable, light and durable".
Details
Standard configuration list of quick consolidation container | |||||
Parameters | Thermal insulation performance | λ=0.048W/m·K | Wind resistance | 0.60kN/㎡ | |
Sound insulation performance | Sound insulation ≥30dB | Fire performance | Level A | ||
Waterproof | There is organized drainage, with precipitation of 16mm/min and no leakage. | Shock resistance | Level 8 | ||
Ground live load | 2.0kN/㎡ | Roof live load | 1.0kN/㎡ | ||
External dimensions: L5950mm*W3000mm*H2800mm | Configuration Instructions | quantity | Remark | ||
1 | Main frame | Top frame | Top long beam: 2.3mm galvanized steel, top frame 160mm; | 2 | |
Top short beam: 2.3mm galvanized steel, top frame 160mm; | 2 | ||||
Bottom frame | Bottom long beam: 2.3mm galvanized steel, top frame 160mm; | 2 | |||
Bottom short beam: 2.3mm galvanized steel, top frame 160mm; | 2 | ||||
Column | Column: 2.3mm galvanized steel 160mm*160mm; | 4 | |||
Bolts: M12×35 high-strength bolts; | 64 | ||||
Corner | 160mm*160mm, wall thickness 4.0mm; | 8 | |||
2 | Spray paint | Electrostatic spraying technology, no fading for 7 years; | 1 set | ||
3 | Platen slot | Top long beam pressure plate groove: aluminum alloy profile thickness 1.0mm; | 2 | ||
Top short beam pressure plate groove: aluminum alloy profile thickness 1.0mm; | 2 | ||||
4 | Square tube system | Chassis purlin | 50*10 galvanized square tube, thickness 1.2mm; | 9 | |
Top purlin | 50*50 galvanized square tube, thickness 1.6mm; | 2 | |||
40*60 galvanized square tube, thickness 1.1mm; | 1 piece | 6.00m long | |||
40*60 galvanized square tube, thickness 1.1mm; | 6 | 1.88m Length | |||
Door frame column | 20*40 galvanized square tube, thickness 1.2mm; | 1 piece | |||
5 | Rockwool wall panels | The color steel composite board is 50mm thick, the double-sided thickness of the color steel board is 0.25mm, PE film is attached, the color is white and gray, and the double-sided ribs are pressed; the rock wool bulk density is 60kg/m³, and the combustion performance is Class A non-combustible. | 1 set | ||
6 | Steel door | Steel door set, size ≥W925mm×H2035mm, fireproof door lock; | 1 fan | ||
7 | External windows | Plastic steel series sliding window, size: W920mm×H1200mm×2; single glass with anti-theft tube; | 2 fans | ||
8 | Indoor floor | 18mm cement sanding board | 5 pieces | ||
9 | Roof Tile | The thickness of the color steel veneer is 0.45mm; | 6 sheets | ||
10 | Roof insulation | Glass wool felt, thickness 40mm, bulk density 14kg/m³, combustion performance is Class A non-combustible; | 1 volume | ||
11 | Indoor ceiling tiles | 0.23mm single-layer color steel plate-98 type corrugated tile; | 6 sheets | ||
12 | Interior decoration corner | Color steel inner corner line, 4 inner corners, 4 inner corners | 1 set | ||
13 | Other auxiliary materials | Standard includes all screws, structural adhesives, etc. | 1 set | ||
14 | Indoor circuit (optional) Please let me know if you need a circuit |
Light: LED dustproof light × 2 sets, 40W/set | 0 sets | Default surface mounted | |
Socket: 10A five-hole socket × 4, 16A air conditioning socket × 1 | |||||
Switch: Single-button switch × 1 | |||||
Distribution box: Surface mounted distribution box × 1 | |||||
Wiring: Household line: 3*4 square, air conditioning socket: 3*2.5 square, five-hole socket: 3*1.5 square |
