Introduce

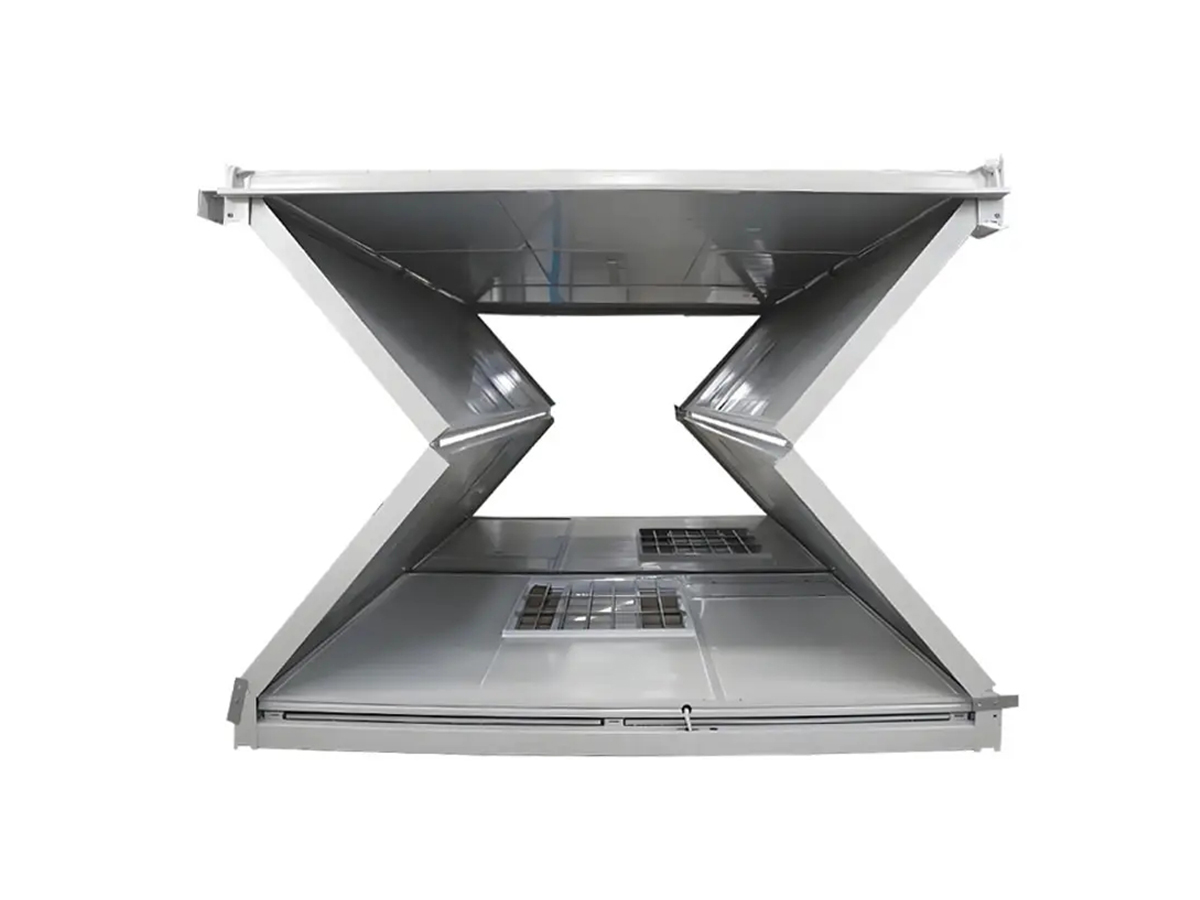

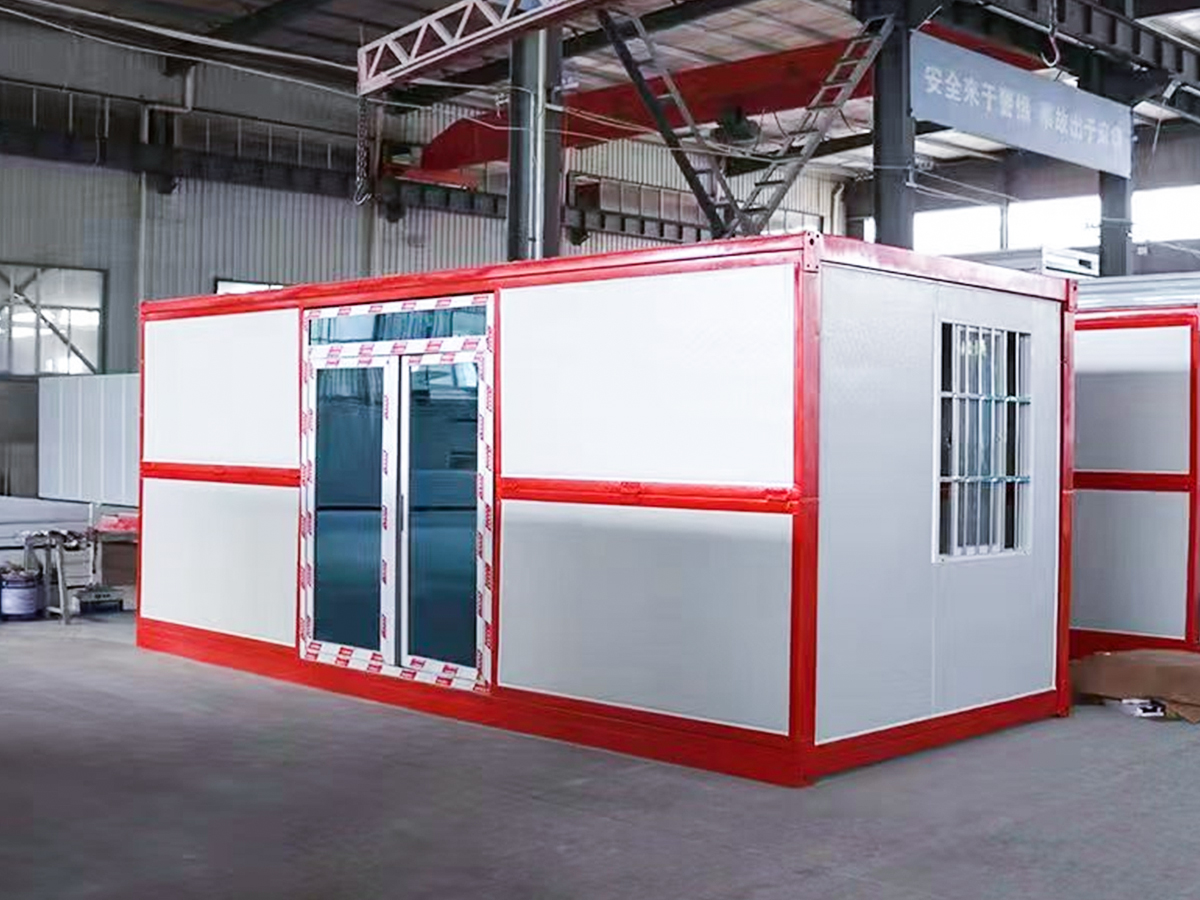

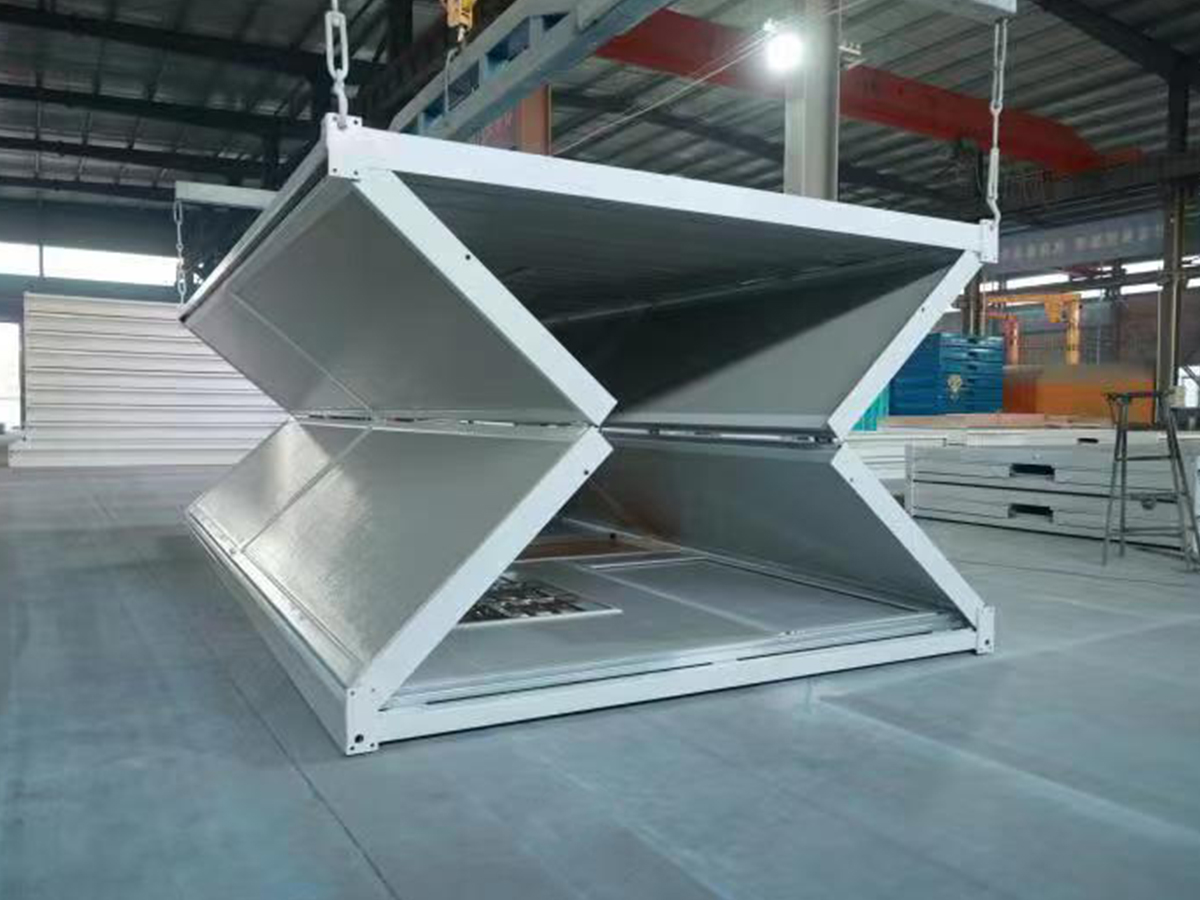

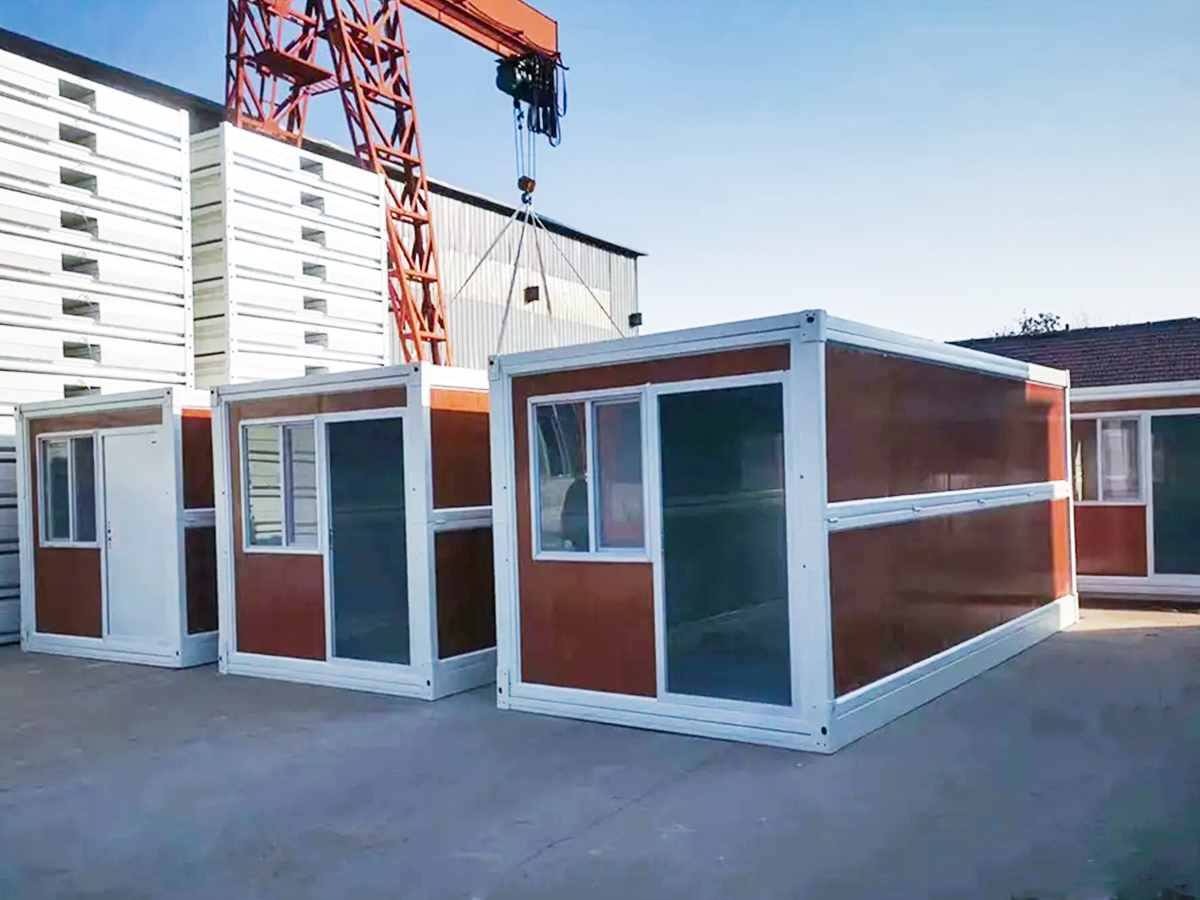

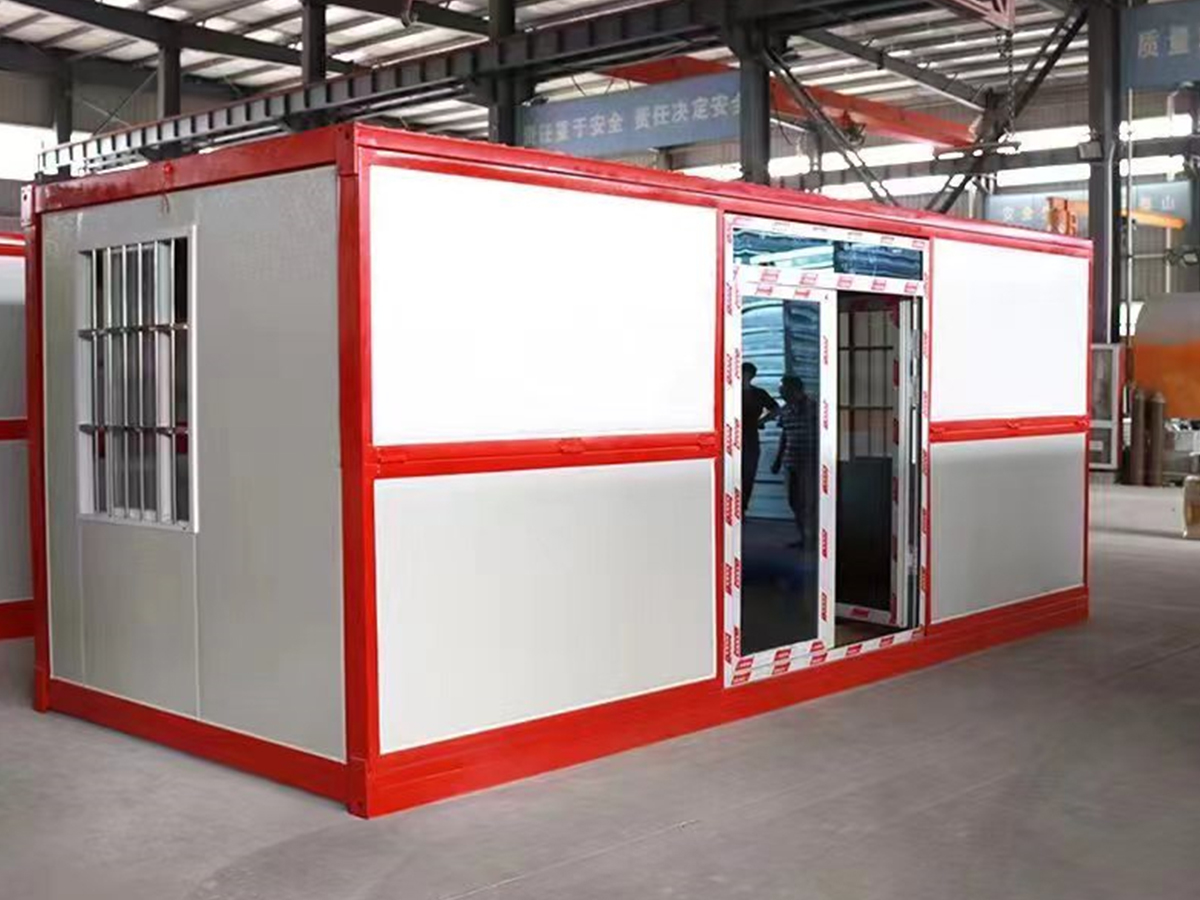

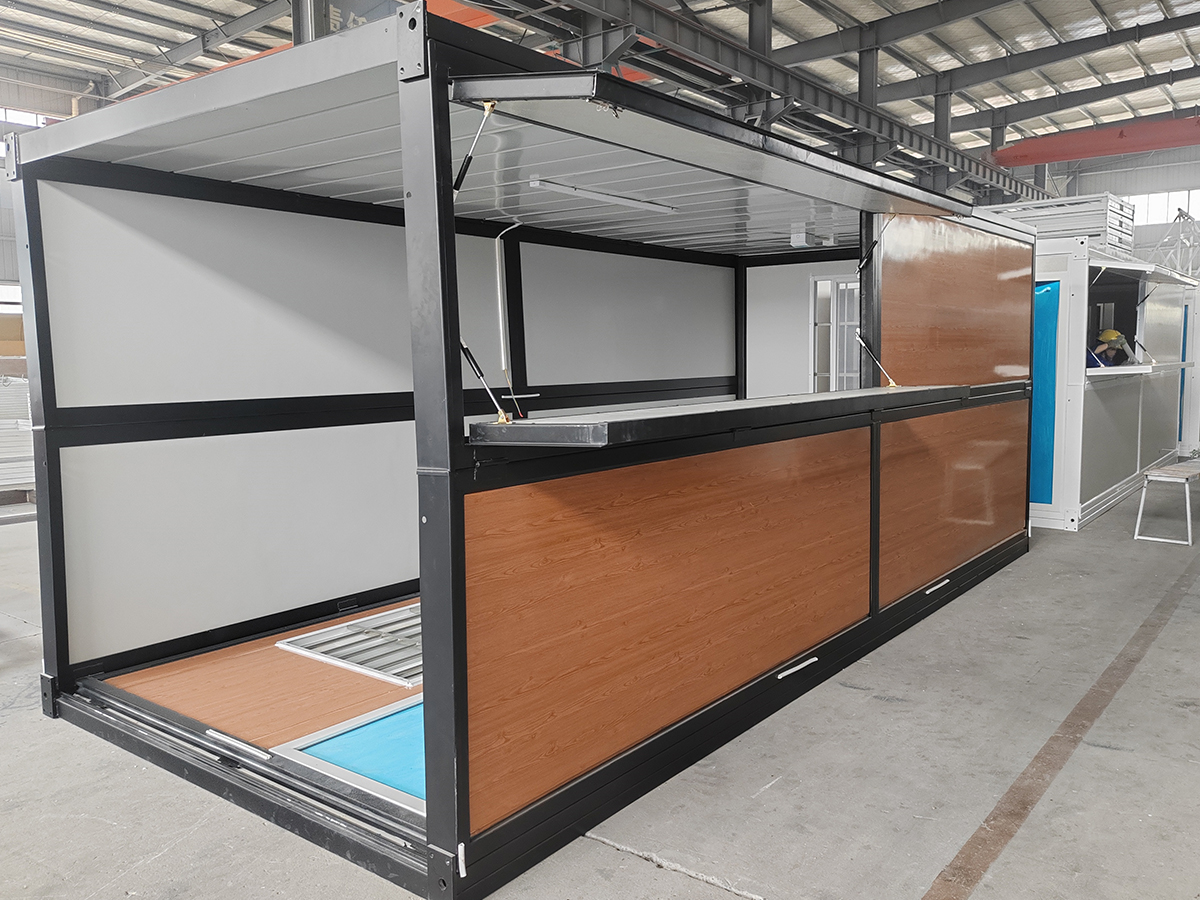

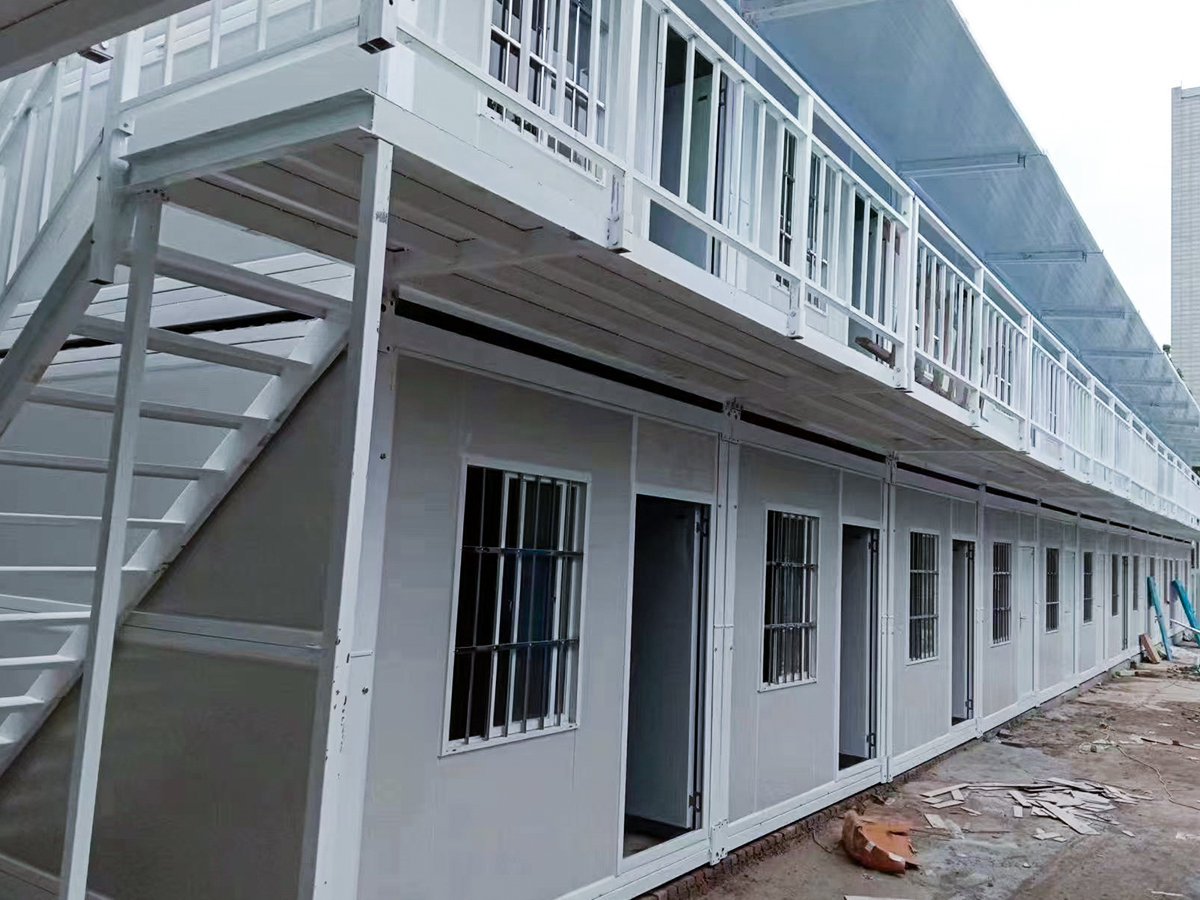

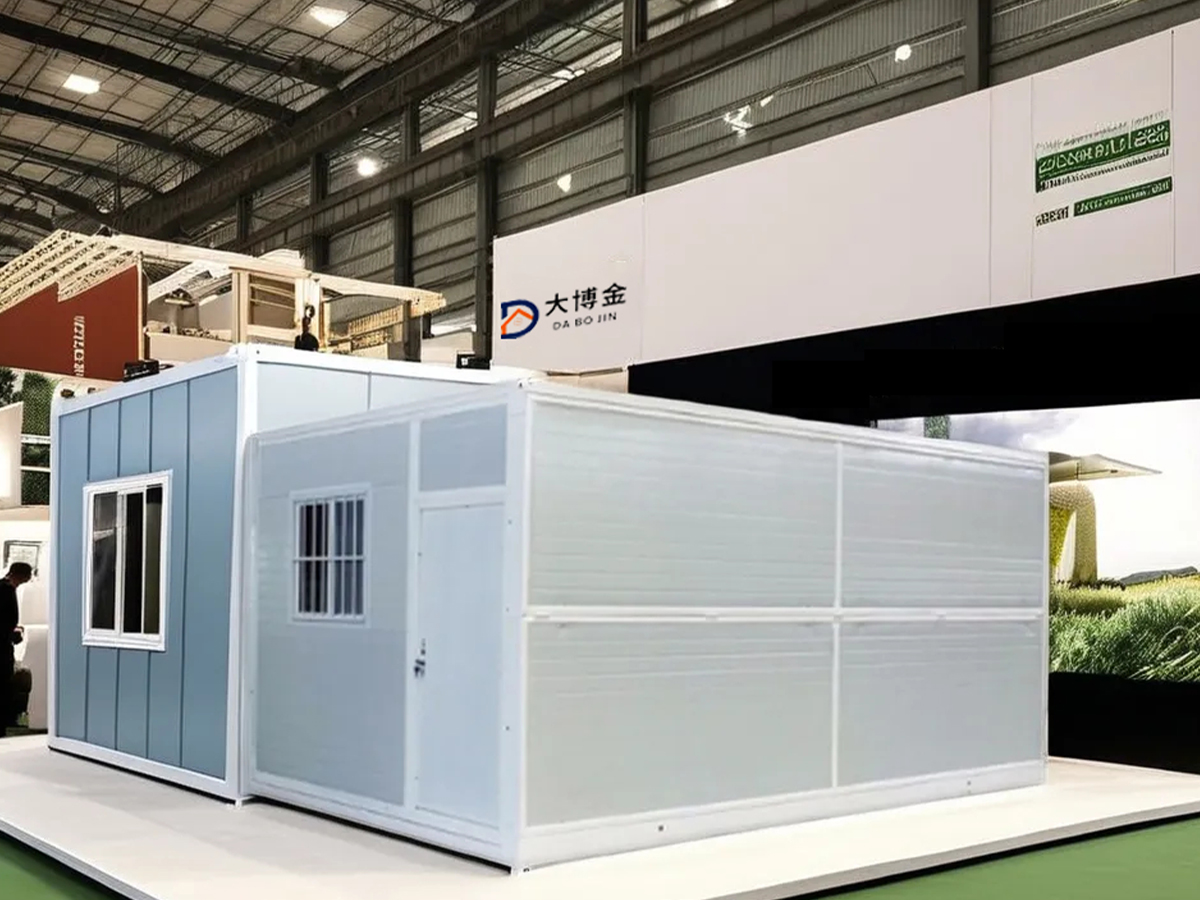

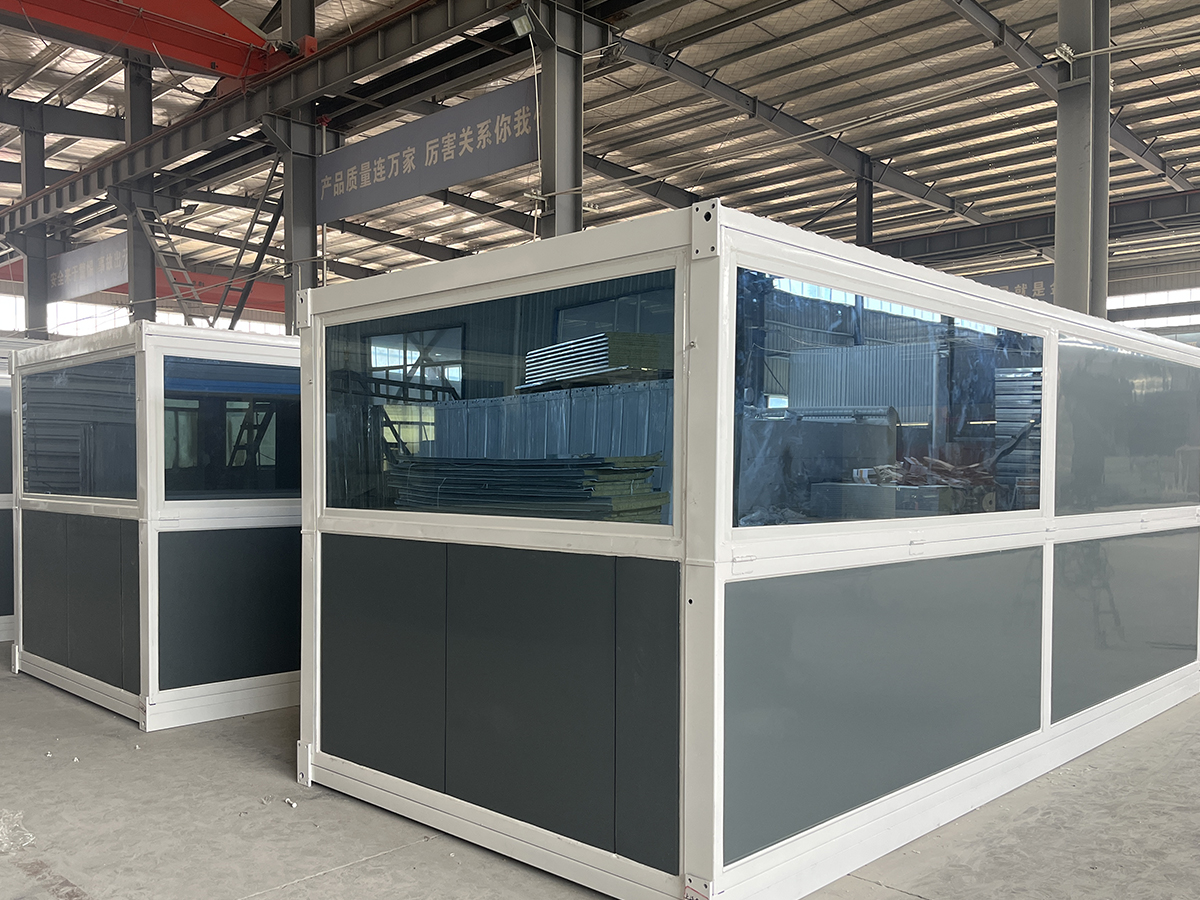

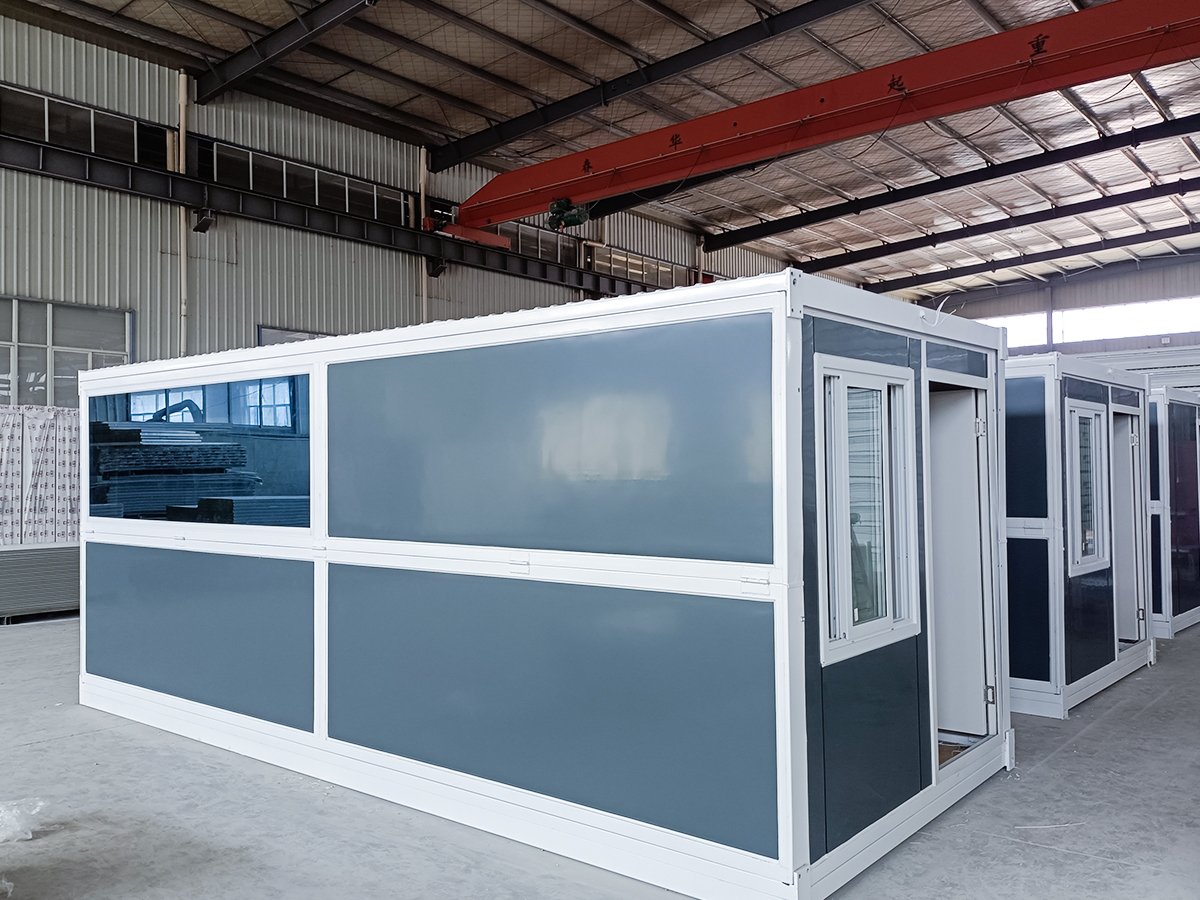

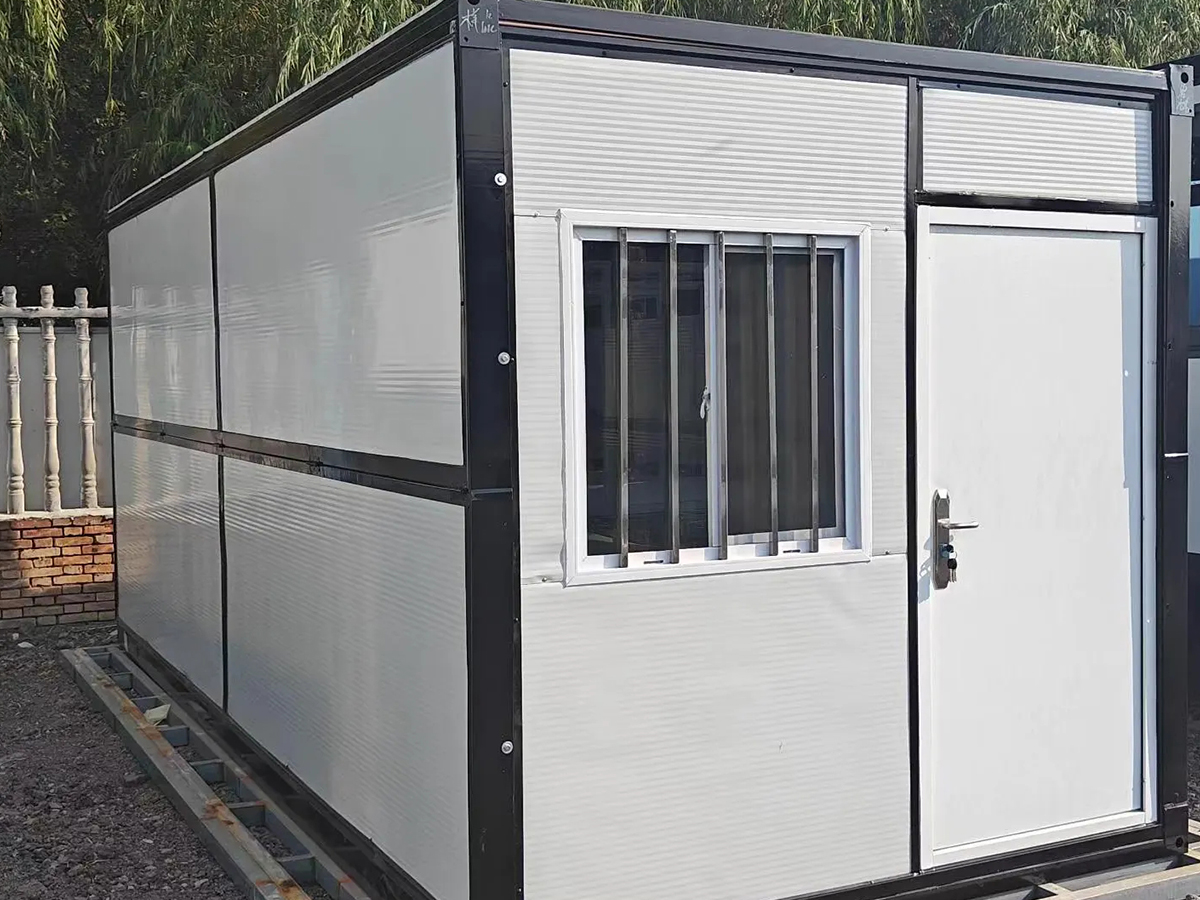

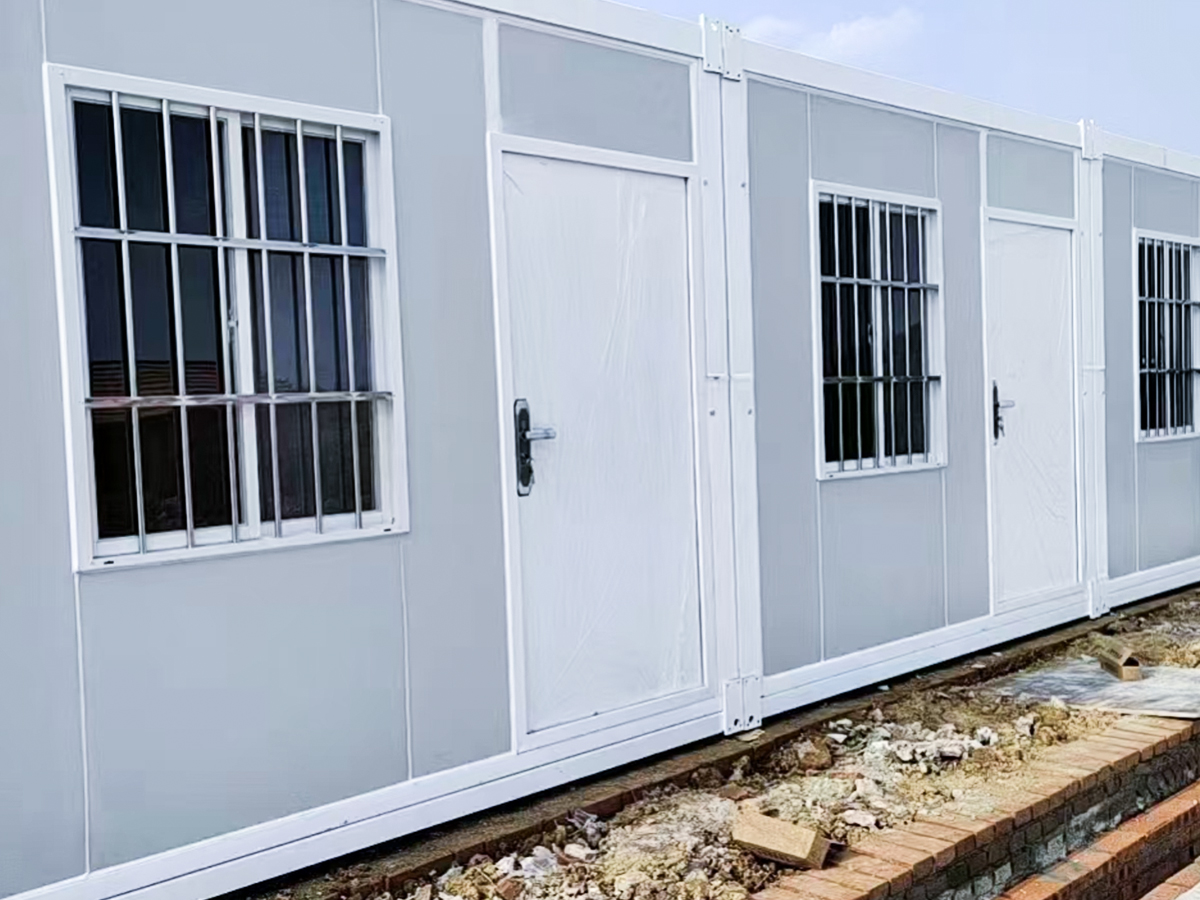

The M-type foldable container house is an innovative building product that provides high-quality space solutions for various scenarios. It uses high-strength steel as a frame and is matched with lightweight enclosure materials. It is sturdy and durable. Folding is its outstanding feature. The overall shape is M-shaped, which can greatly reduce the space when idle or transported, effectively reducing transportation and storage costs. The rapid construction is a major advantage. After arriving at the site, there is no need for complicated construction processes and a large amount of equipment. Through simple unfolding and assembly, it can be completed in a short time to meet emergency or temporary space needs. Its spatial layout is flexible and changeable, and the interior can be transformed according to actual needs. Whether it is used as a dormitory, residence, office space, or commercial store, it can be easily adapted. In terms of safety performance, it has good wind, earthquake, fire and moisture resistance. Its high-strength galvanized steel frame is earthquake-resistant to level 8 and wind-resistant to level 12. The A-level fireproof polyurethane wall is fire-resistant for more than 1 hour, building a solid safety barrier for users. At the same time, it is also very green and environmentally friendly. Most of the materials are recyclable, which reduces the generation of construction waste. It also has good thermal insulation properties, which can effectively reduce energy consumption and save costs. From construction sites to tourist attractions, from emergency rescue sites to commercial venues, folding box integrated houses are widely used and are becoming a new type of building with great potential due to their unique advantages.
Details
Name | Foldable container house |
Size | 5800*2438*2530 |
5800*2438*565 (Folding size) | |

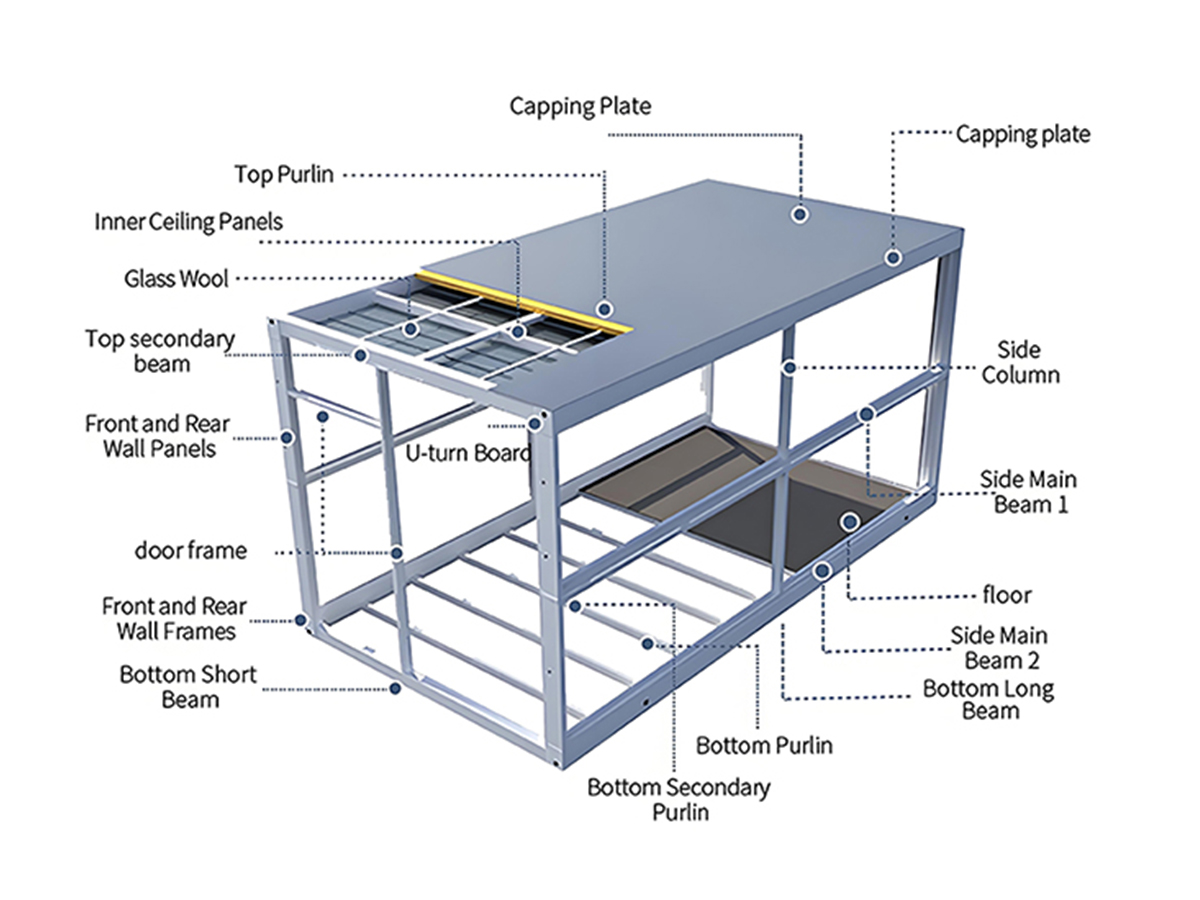

Top frame( zinc content of 80g/㎡) | 2.3mm galvanized formed crossbeam |
2.3mm galvanized formed crossbeam | |
Galvanized C80*1.2mm cross brace | |
30*30*1.0mm galvanized square tube | |
Bottom frame( zinc content of 80g/㎡) | 2.3mm galvanized formed crossbeam |
2.3mm galvanized formed crossbeam | |
Lower crossbeam angle steel flashing | |
50 * 100 * 1.2mm square tube galvanized cross brace | |
Column( zinc content of 80g/㎡) | 2.3mm galvanized column |
Connection 2.0mm | |
Hanging head( zinc content of 80g/㎡) | 7mm corner piece |
Colour | Baking paint (electrostatic spraying) |
Bolts | Inner hexagonal (galvanized) |
Single tile capping | 0.4mm color steel single tile, 360-degree bite |
Downspout | Φ50 downspouts |
Moisture-proof | Damp proof film, PE resin film 1.0mm |
t75mm glass wool | 75mm glass wool insulation 14kg/m³ |
Suspended ceiling tile | t0.3mm, color steel integrated ceiling panel |
Cement fiber board | 18mm |
Steel door | t50mm 925 * 1970 |
Plastic steel Windows | t50mm Plastic steel Windows 800 * 1110 |
Standard configuration | Industrial Socket Boxes, Sockets, Wires, etc. (One Set), Customizable |
Wall panel | t50mm rock wool composite board, double-sided steel plate t0.3/0.3mm, unit weight 80kg/m³ |
