Introduce

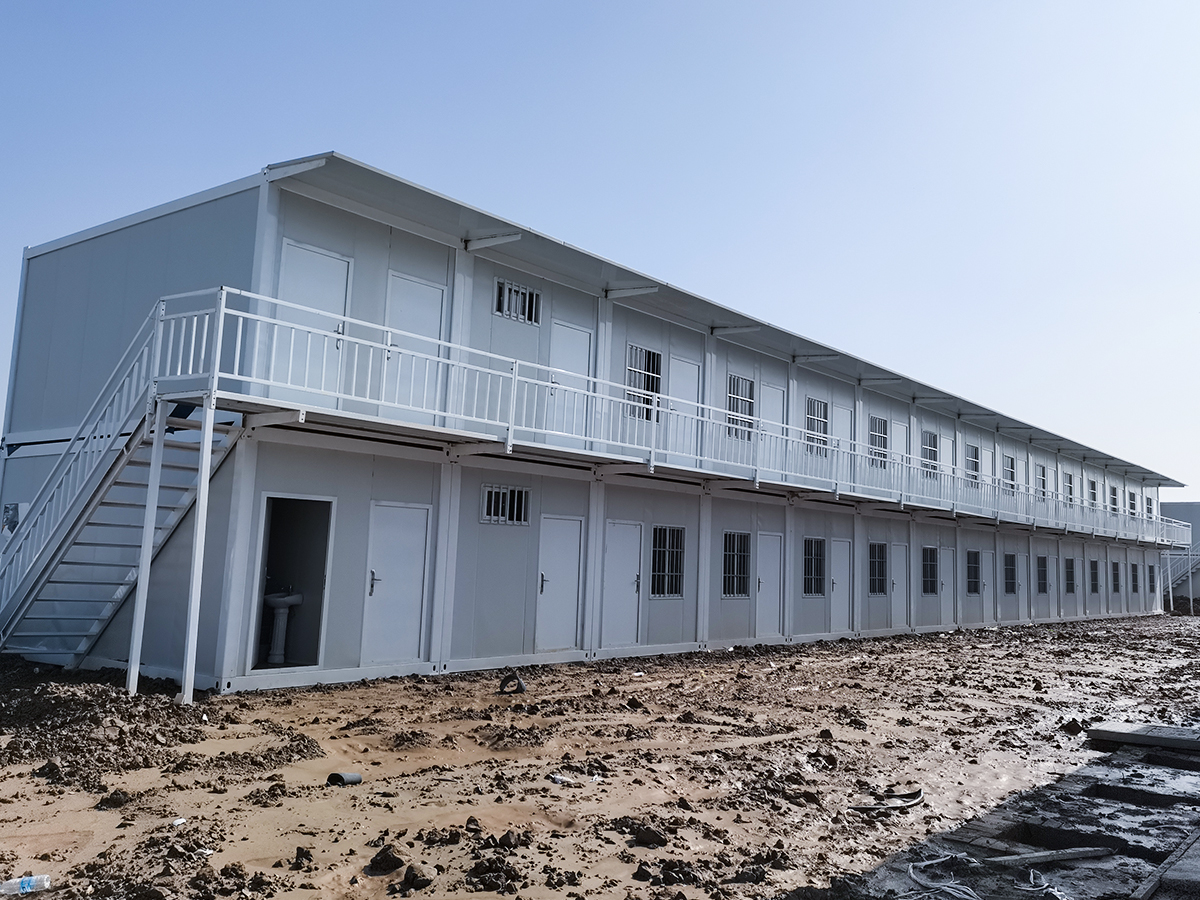

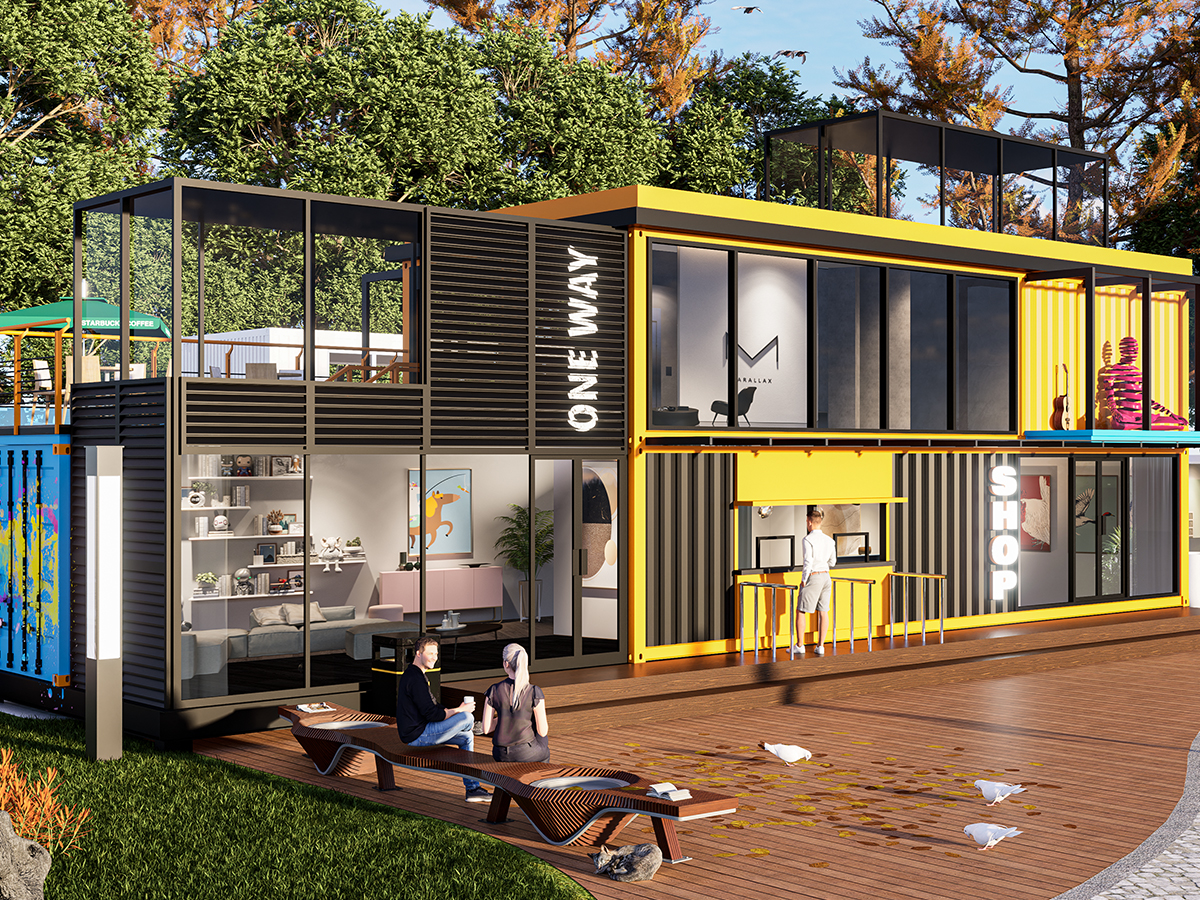

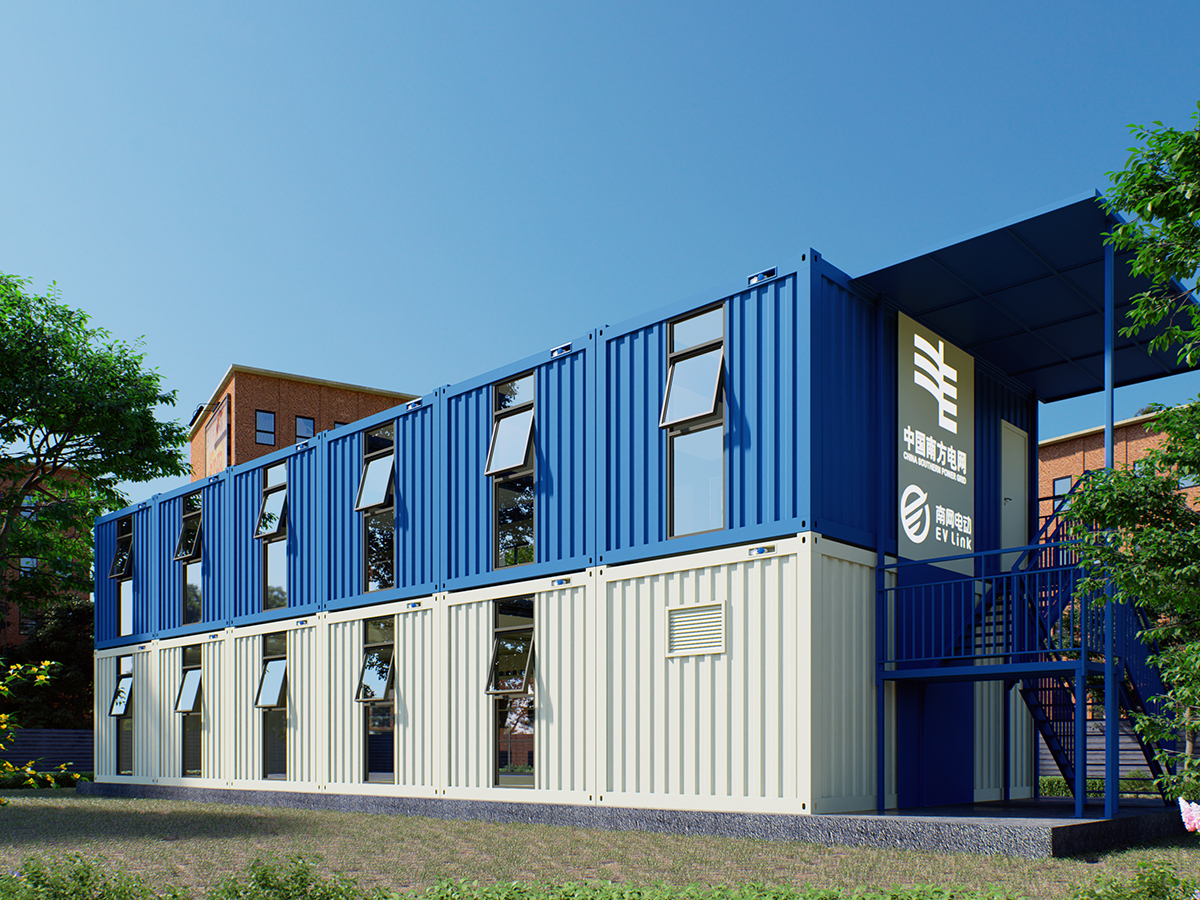

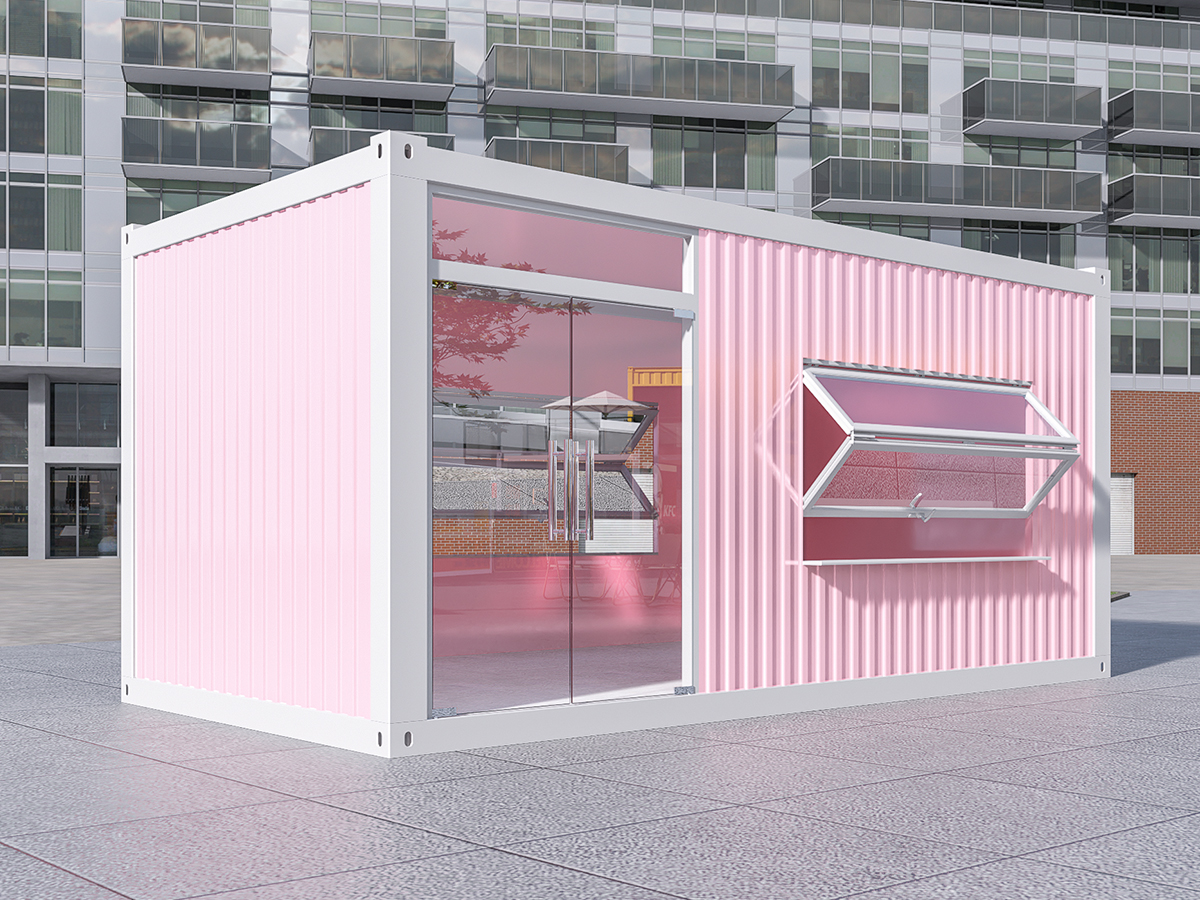

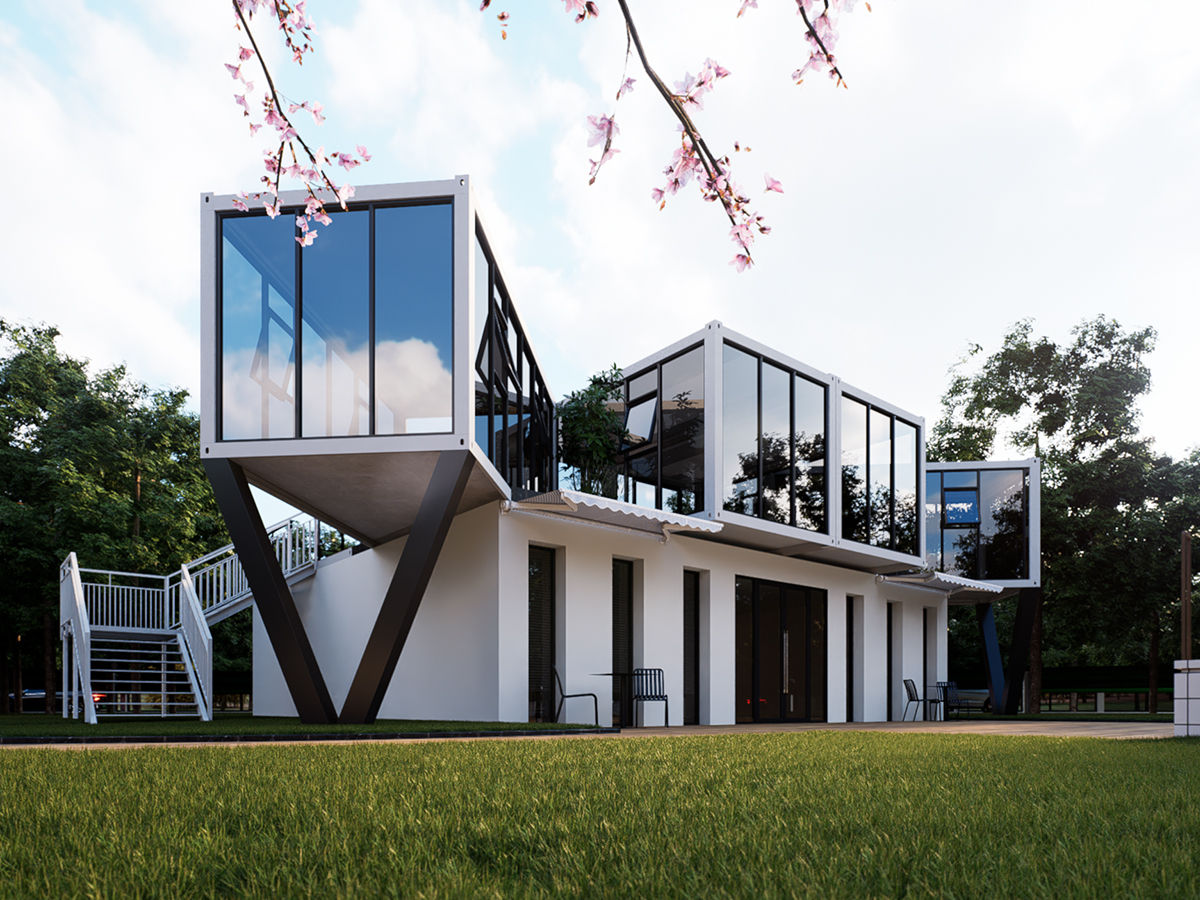

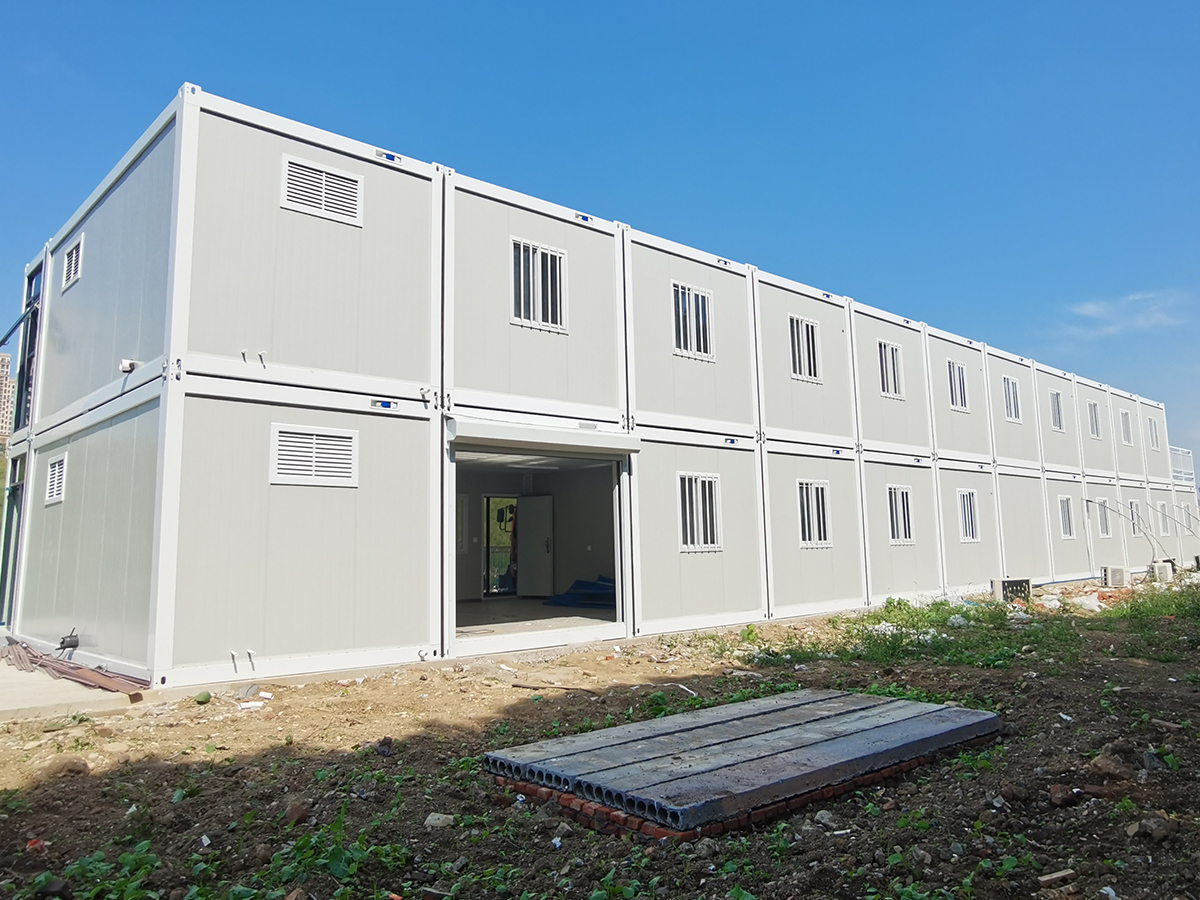

The two-layer combinable flat-pack container house achieves multi-scenario coverage + environmental protection and economic win-win + recycling value with modular design and industrial-grade standards. Whether it is emergency rescue, business innovation or urban renewal, its application scenarios span the entire domain: quickly build an epidemic prevention and isolation station or an earthquake command center in 48 hours, equipped with water, electricity and sewage treatment systems; as a pop-up store or mobile cafe to seize traffic high ground, or transform into a construction site dormitory or modular laboratory to serve infrastructure needs; in the field of cultural tourism, container homestays and desert starry sky rooms are created, and the idle space in the city is activated by rooftop construction, showing the ultimate adaptability of "one box with a thousand faces". It has environmental performance, the main body is made of 95% recyclable steel, construction waste is reduced by 80%, and the reusable characteristics run through the entire life cycle - the modular box supports non-destructive disassembly and off-site reorganization, and a single box can be recycled more than 10 times, greatly reducing resource consumption; it is equipped with solar photovoltaic panels and rainwater collection systems to achieve low-carbon operation. The economic advantages are significant. Factory prefabrication reduces the overall cost by 40% and the construction period by 80%. The leasing and recycling model further reduces the investment cost. From post-disaster reconstruction to commercial store expansion, it can create the greatest value with the least resources, becoming a green building benchmark that takes into account both short-term flexibility and long-term sustainability.
Details

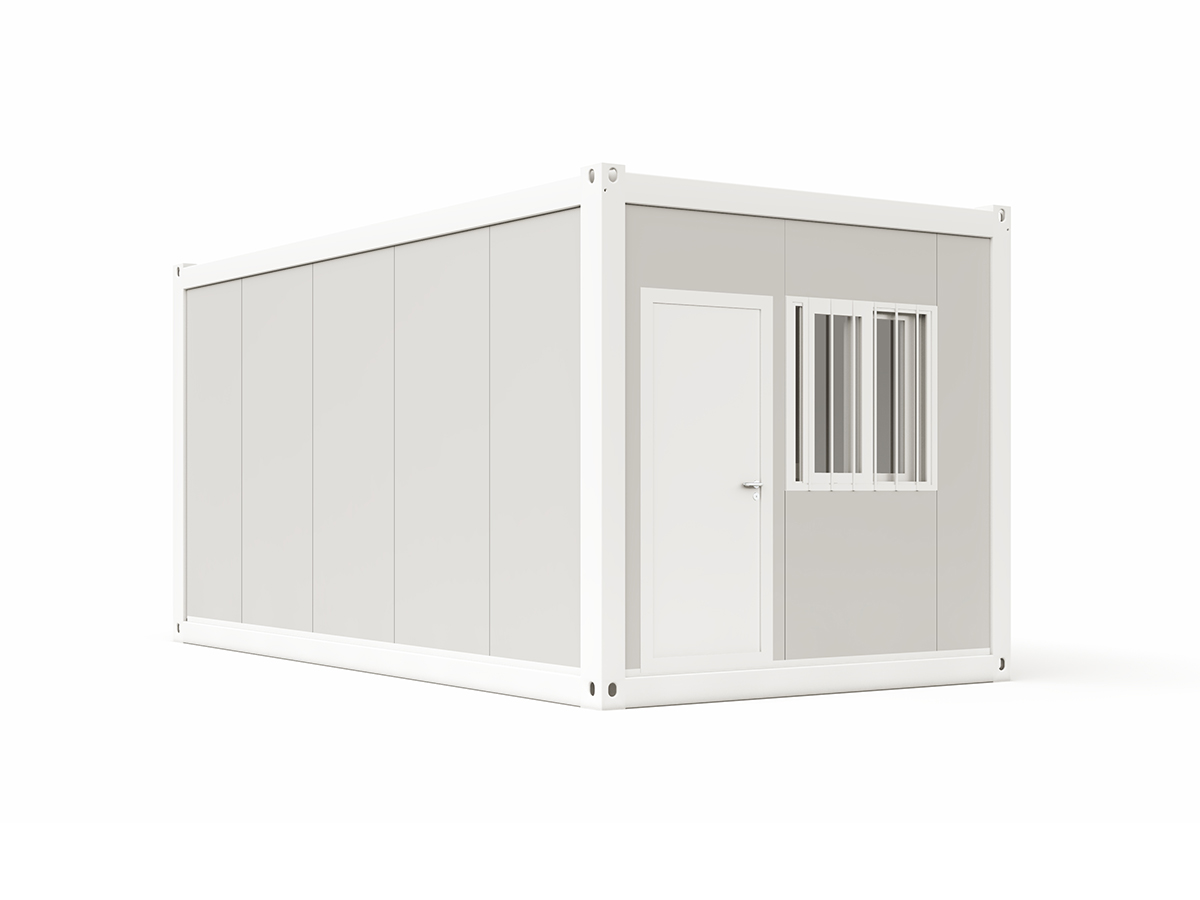

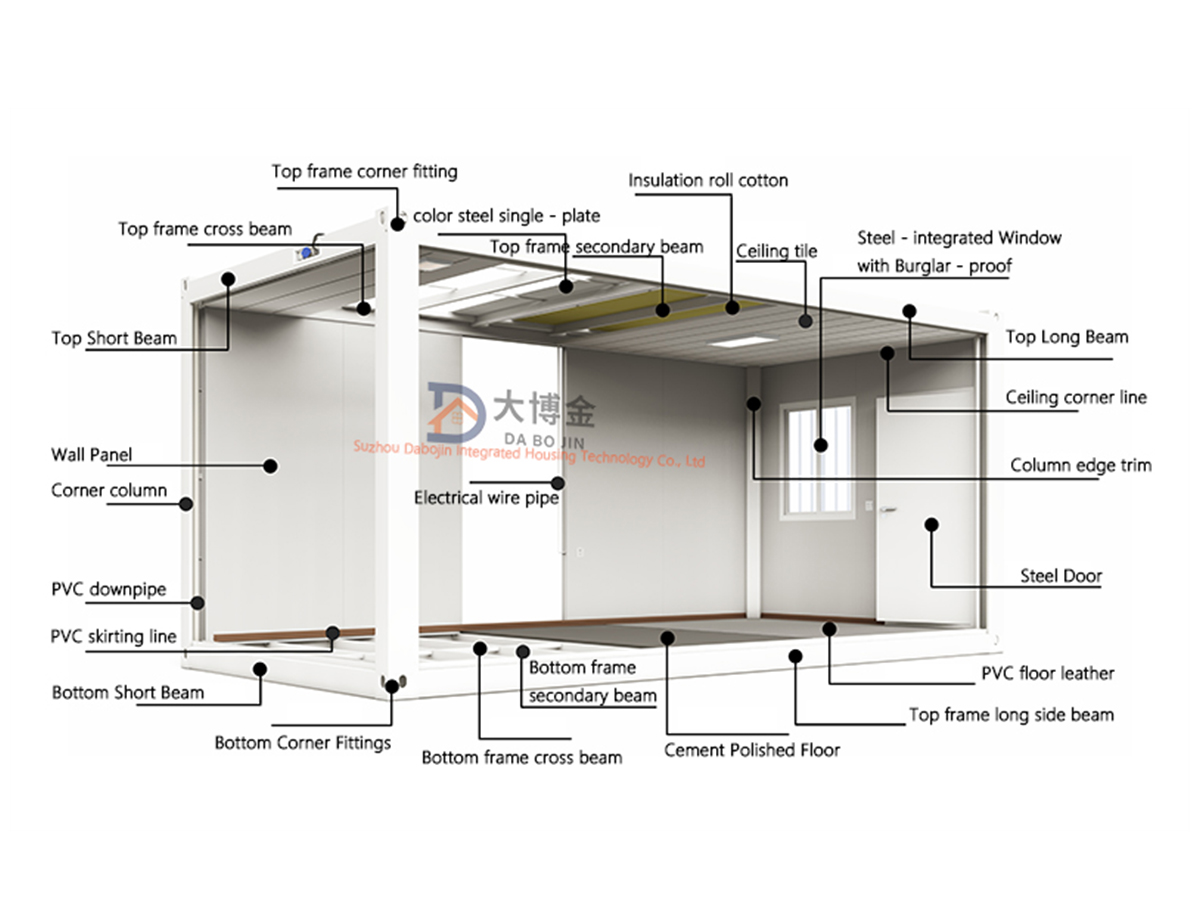

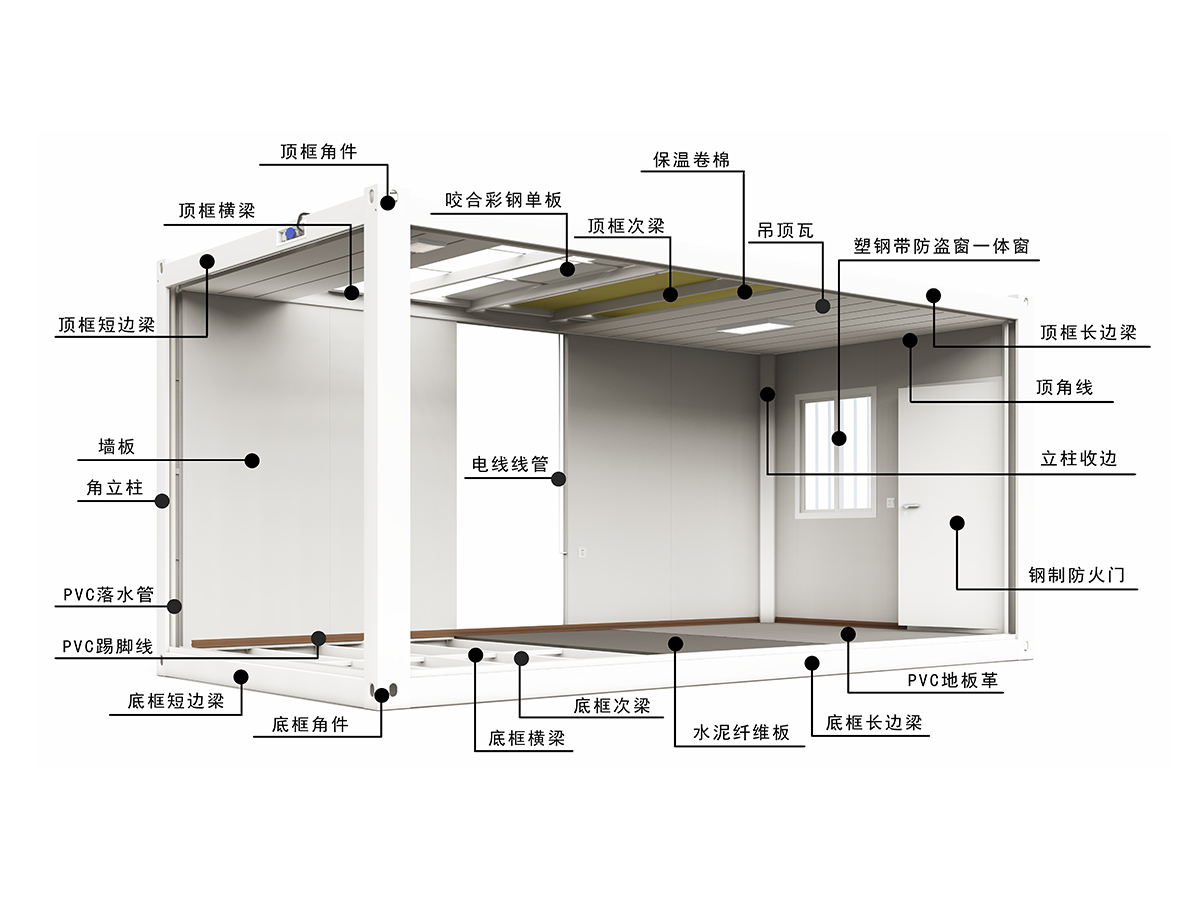

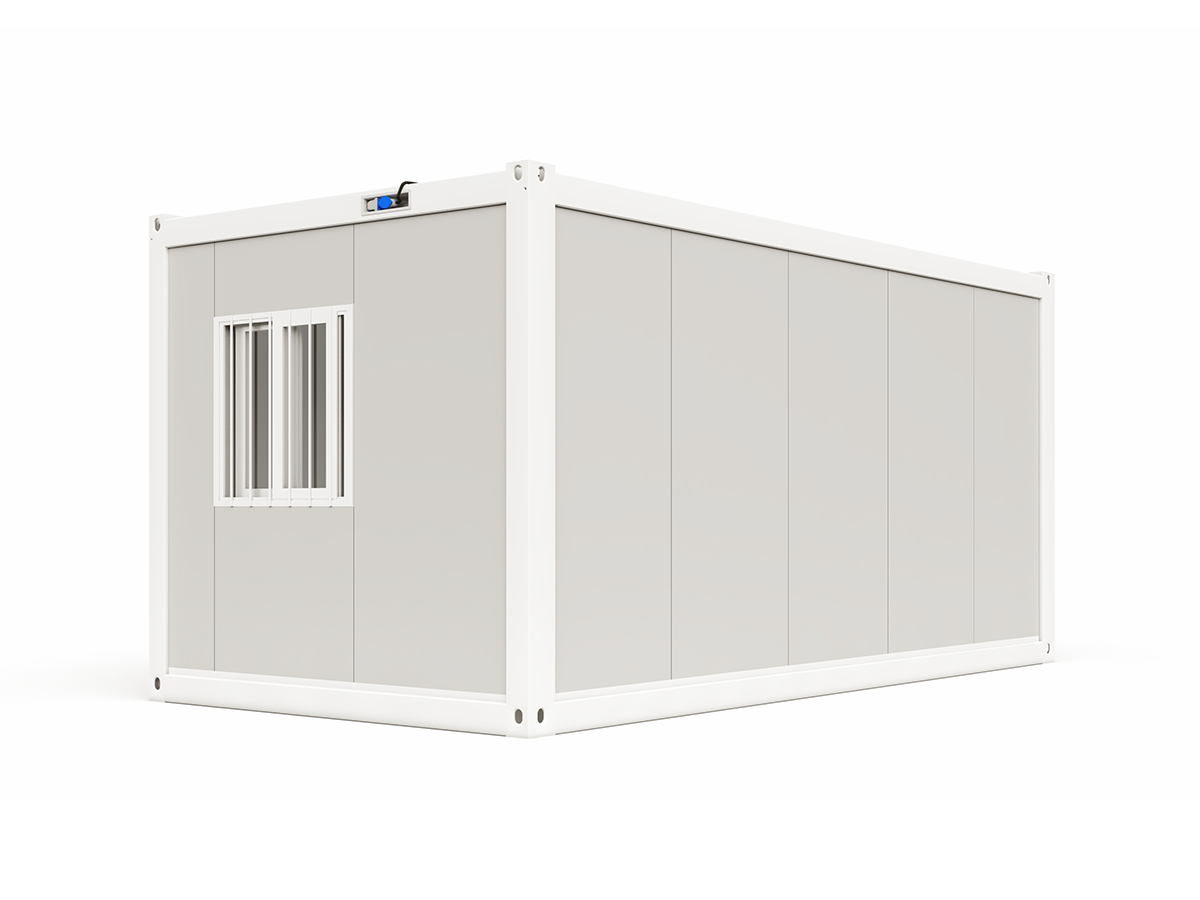

High-end A-type packaged container room (6055mm*2990mm*2896mm) | |||||
Name | Part Name | Name | Unit | Quantity | |
Main frame 3.0mm | Top frame | 3.0mm galvanized profiled beam, galvanized content 80g/㎡, 170mm wide and 5633mm long | branch | 2.00 | |
3.0mm galvanized profiled beam, galvanized content 80g/㎡, 170mm wide and 2688mm long | branch | 2.00 | |||
Galvanized C80*1.2mm cross brace, galvanized content 80g/㎡ | branch | 7.00 | |||
30*30*1.0mm galvanized square tube, galvanizing content 80g/㎡ | branch | 2.00 | |||
Bottom frame | 3.0mm galvanized profiled beam, galvanized content 80g/㎡, 160mm wide and 5633mm long | branch | 2.00 | ||
3.0mm galvanized profiled beam, galvanized content 80g/㎡, 160mm wide and 2688mm long | branch | 2.00 | |||
Flashing of lower cross beam angle steel, 5633mm | branch | 2.00 | |||
Flashing of lower cross beam angle steel, 2688mm | branch | 2.00 | |||
Galvanized 50*100*1.2mm square tube galvanized cross brace, galvanizing content 80g/㎡ | branch | 9.00 | |||
Integrated sink with flashing base, 5633mm | branch | 2.00 | |||
Integrated sink with flashing base, 2688mm | branch | 2.00 | |||
Column | 3.0mm galvanized column, galvanized content 80g/㎡ 210 width, 150 width 2520mm height | branch | 4.00 | ||
Connector 2.0mm, zinc plating content 80g/㎡ | piece | 8.00 | |||
L-shaped column reinforcement | branch | 8.00 | |||
Hanging head | 7mm corner piece, galvanized content 80g/㎡ 210mm high 170 wide | indivual | 4.00 | ||
7mm corner piece, galvanized content 80g/㎡ 165mm high 150 wide | indivual | 4.00 | |||
color | Paint (electrostatic spraying) | set | 1.00 | ||
bolt | Hexagon socket (galvanized) | indivual | 48.00 | ||
roof | Single tile capping | 0.4mm color steel single tile, 360 degree bite, special waterproof method | set | 1.00 | |
Downspout | Downspout | 50 Downpipe | branch | 4.00 | |
Ceiling insulation | Moisture-proof | Moisture-proof film, PE resin film 1.0mm | set | 1.00 | |
100 glass wool | 100mm glass wool insulation quilt 14kg/m³ | ||||
Ceiling | Ceiling Tile | 0.4 thick, 831 color steel integrated ceiling board | set | 1.00 | |
ground | Cement fiber board | 18mm thick, 1177*2820mm | open | 5.00 | |
Floor decoration | Plastic floor | 2.0mm, including weld and wear-resistant layer (common colors) | set | 1.00 | |
Interior decoration | Yin Angle Line | Color steel inner corner line, white and gray | branch | 4.00 | |
Door | High-grade steel door | 925*2035 (950 wall panel) | set | 1.00 | |
window | Double-glazed plastic steel window | Double-glazed plastic steel window 925*1110 (950 wall panel) | set | 2.00 | |
Supplementary materials | Supplementary materials | Screws, sealant, internal box connectors, skirting | set | 1.00 | |
electricity | Advanced electrical components | Industrial socket box + industrial socket (1 set) Distribution box J-8 (1), 1 leakage protection (32A), 2 circuit breakers (2P32A). Main line 3*6m², three-hole socket line (for air conditioner) 3*4m². Five-hole socket line 3*3.0m². Switch line 2*1.5m². 3 five-hole sockets (10A), 1 single switch, 1 three-hole socket (16A), 2 LED strip lights, Chint socket | set | 1.00 | |
Wall Panels | Double-sided 0.5 (950 type) | 75mm rock wool composite board, double orange peel bulk density 80kg/m³ film | set | 1.00 |
