High-Quality Mobile Home Portable Living Container Housing Custom

Home / Product / Expandable Container House / High-Quality Mobile Home Portable Living Container Housing

Introduce

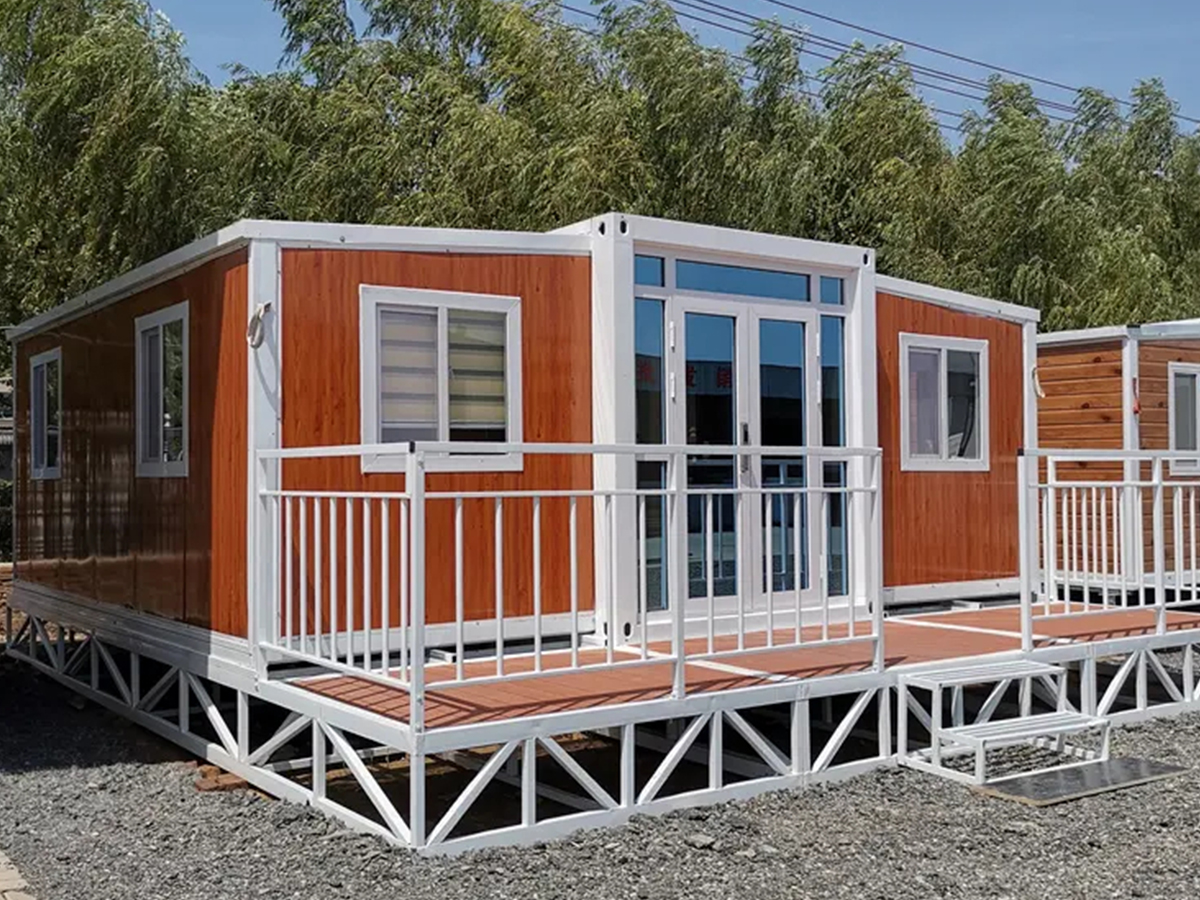

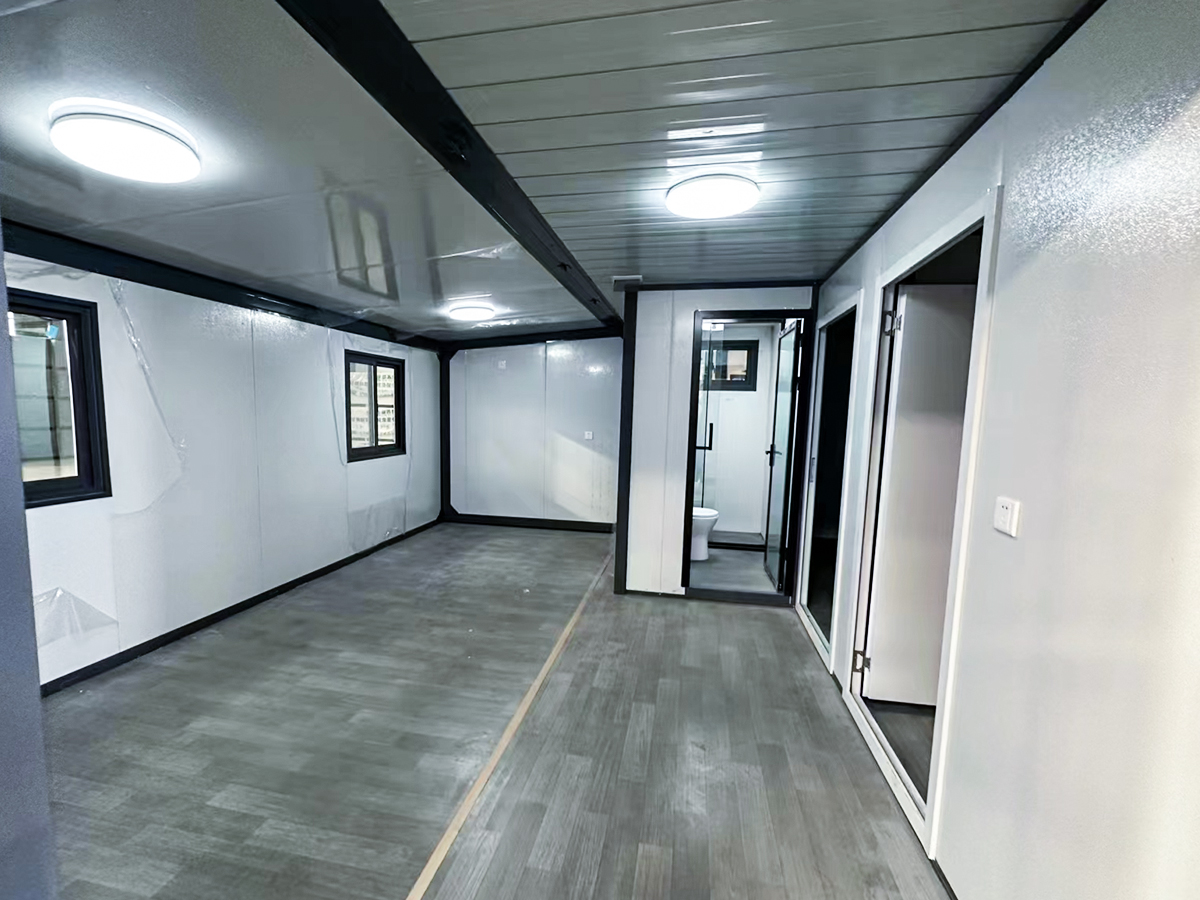

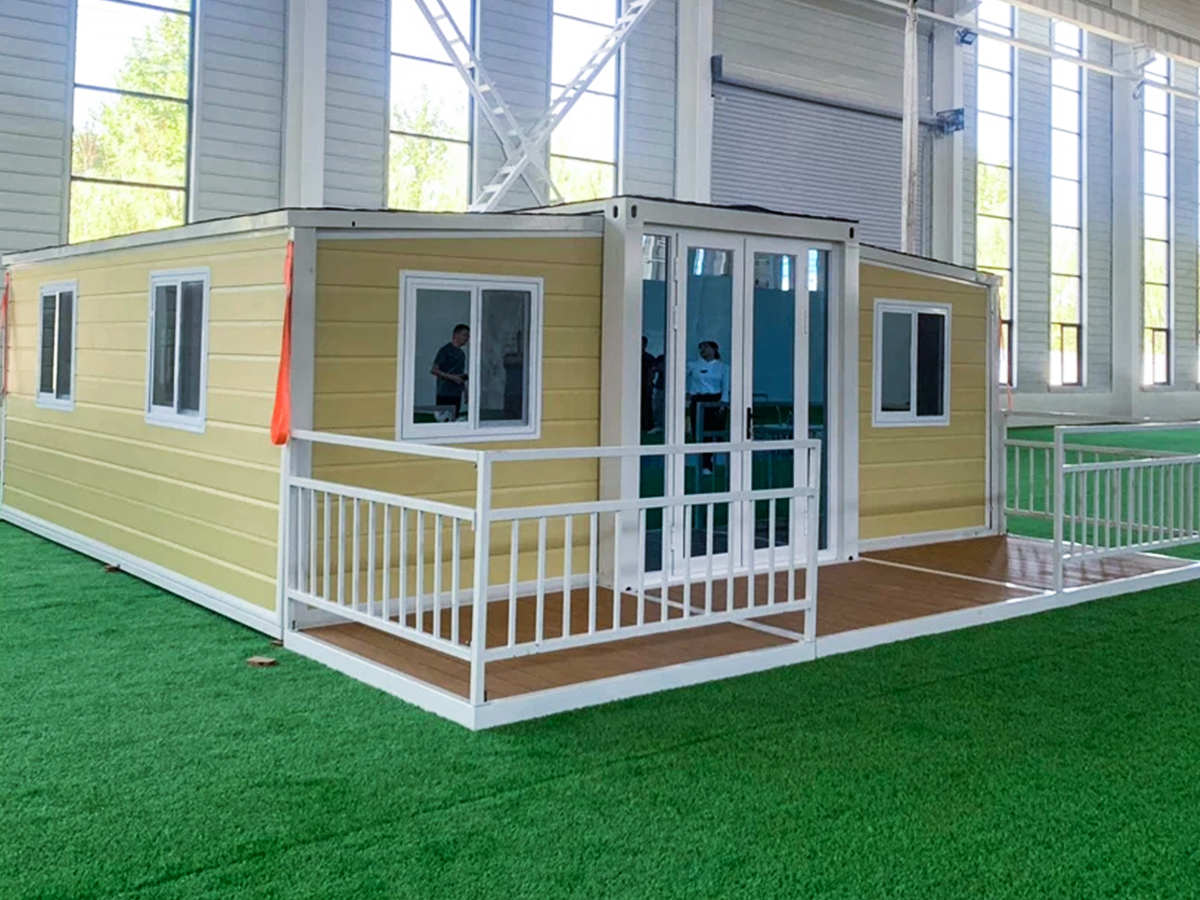

The high-quality mobile home portable living container housing uses modular design to achieve rapid installation and flexible expansion of family housing. The prefabrication rate of a single box in the factory exceeds 90%. Only hoisting and splicing are required on site, and the basic residential construction can be completed in 2 hours. It supports horizontal expansion to add a living room and vertical stacking to create a children's room or an elderly room to meet the dynamic needs of multiple generations living together. The high-strength steel frame is earthquake-resistant to level 9, and the fireproof rock wool wall is fire-resistant for 1 hour. It is equipped with double-layer hollow glass and an intelligent temperature control system. The indoor temperature is constant and comfortable in an environment of -40℃ to 60℃, and the safety performance is comparable to that of traditional houses. Deep adaptation to civil scenarios: a 6m×3m standard box can be transformed into a micro-apartment, a backyard studio or a temporary guest room. Multiple boxes can be combined into a duplex loft in seconds, and a sun room can be added to the roof to activate the old space. The exterior supports customized finishes such as wood grain and stone, and the internal integrated smart home system can realize voice temperature control and remote security. Environmental protection and economic performance are outstanding - the steel recycling rate is 95%, it can be disassembled and reassembled more than 20 times, factory prefabrication reduces the overall cost by 35%, the daily rent of the leasing model is as low as 1/3 of the traditional solution, and the resource consumption in the whole cycle is reduced by 60%. Whether it is the expansion of urban small houses, the renovation of rural courtyards, or temporary travel needs, the expansion box redefines the convenience and quality of family living with the characteristics of "ready to install and live in, change as needed".

Details

Specification of 20" ft expandable container house
Information Expand Size(mm)L*W*H L5900*W6300*H2500






Inner Size(mm)L*W*H  L5440*W6140*H2240
Folding Size(mm)L*W*H L5900*W2200*H2500
Weight(KG) 2800

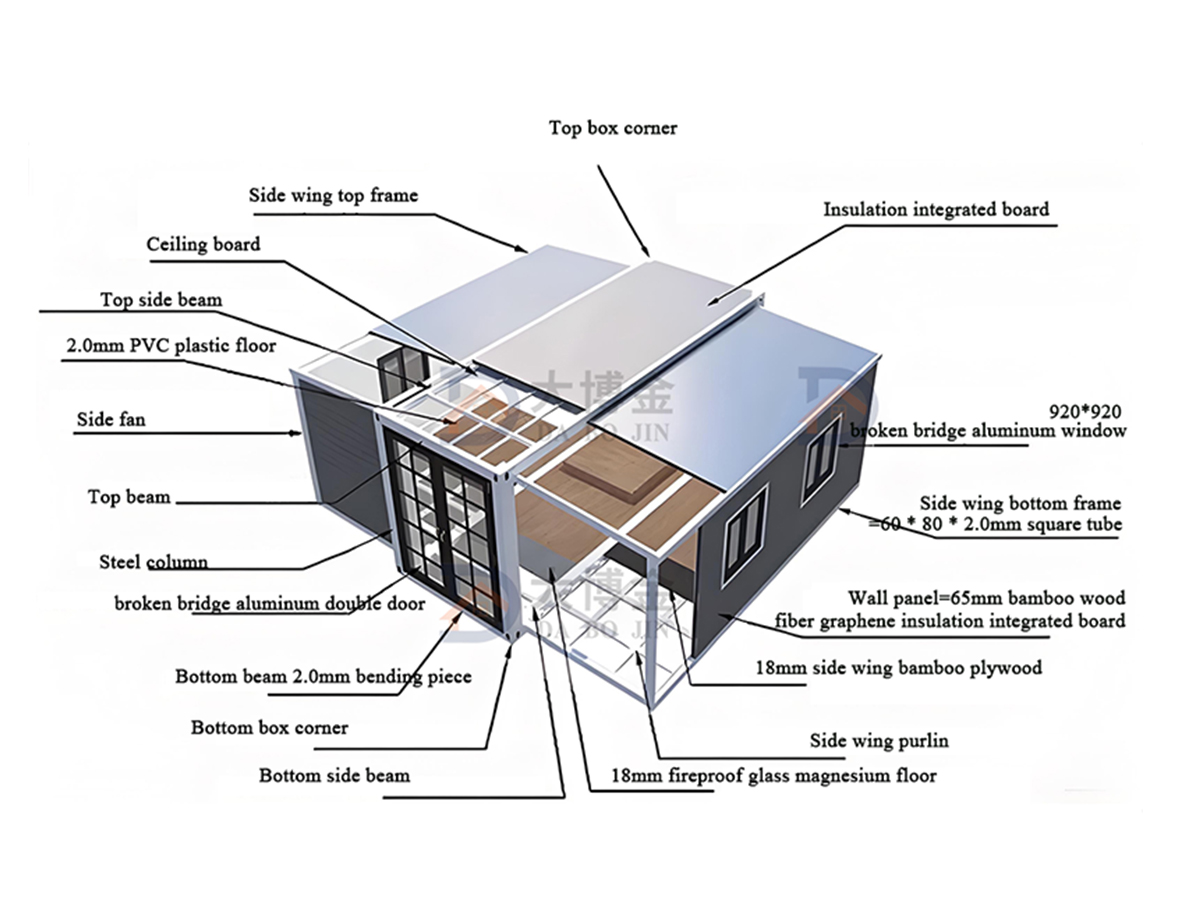

Materials Bottom Beam  Galvanized tube100*100*2.0MM Q235
Galvanized tube80*40*1.5MM Q235
Galvanized tube150*100*2.0MM Q235
Galvanized tube150*150*2.0MM Q235

Beam Galvanized tube150*100*2.0MM Q235
Galvanized tube100*50*2.0MM Q235
Galvanized tube80*80*2.0MM Q235
Galvanized tube60*40*2.0MM Q235
Column Galvanized tube150*150*2.0MM Q235
Frame p80*50*1.2MM Q235
Galvanized tube80*40*1.5MM Q235
Galvanized tube80*60*1.5MM Q235
Galvanized tube120*60*1.5MM Q235
Galvanized tube60*40*2.0MM Q235
Hinge Galvanized Q235
Floor Middle Floor 18mm cement sanding board
Both sides Floor 15mm bamboo plywood
PVC Floor 16mm PVC Floor
Wall panel Wall panel  75mm sandwich panel, color roll double-sided 0.25 (sandwich material is rock wool 80kg/m³, EPS, polyurethane optional)
standard sandwich material is 10kg/m³ EPS
Inner wall panel 50mm sandwich panel, color steel plate base plate double-sided 0.25. Insulation material is the same as above↑ 50mm EPS sandwish panel
Top and side panel 50mm sandwich panel, color steel plate base plate double-sided 0.25. Insulation material is the same as above↑ 50mmEPS sandwish panel
Electric System Specification 1. Main wire 6 square meters, air conditioning wire 4 square meters, socket wire 2.5 square meters, lamp wire 1.5 square meters (can be customized)
2. Circuit breaker system, 2P32 leakage protector 1 piece/2P32A air switch 2 pieces.
3. LED light*6pieces
4. Socket; standard three-hole socket (socket standard can be configured according to customer requirements)

Windows and Doors Outside door Steel door(can be customized)
Inner door 50 socket steel door
Windows Standard plastic steel double glass sliding window (customizable high-end broken bridge aluminum window and aluminum alloy sliding window) 930*900*6 pieces; 500*500*1 piece

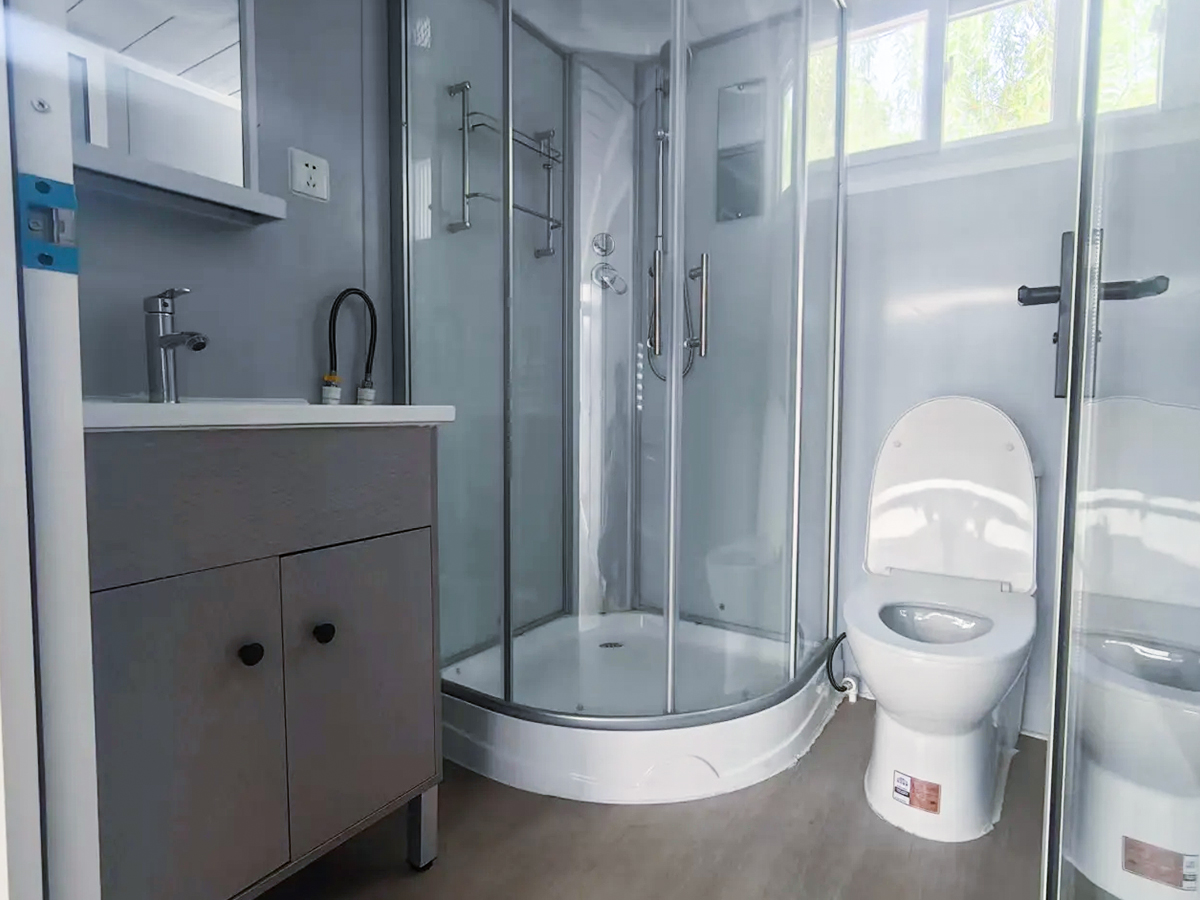

Bathroom fittings Material  Toilet door glass door, integrated shower (sliding door 8mm tempered glass), toilet, wash basin, shower head

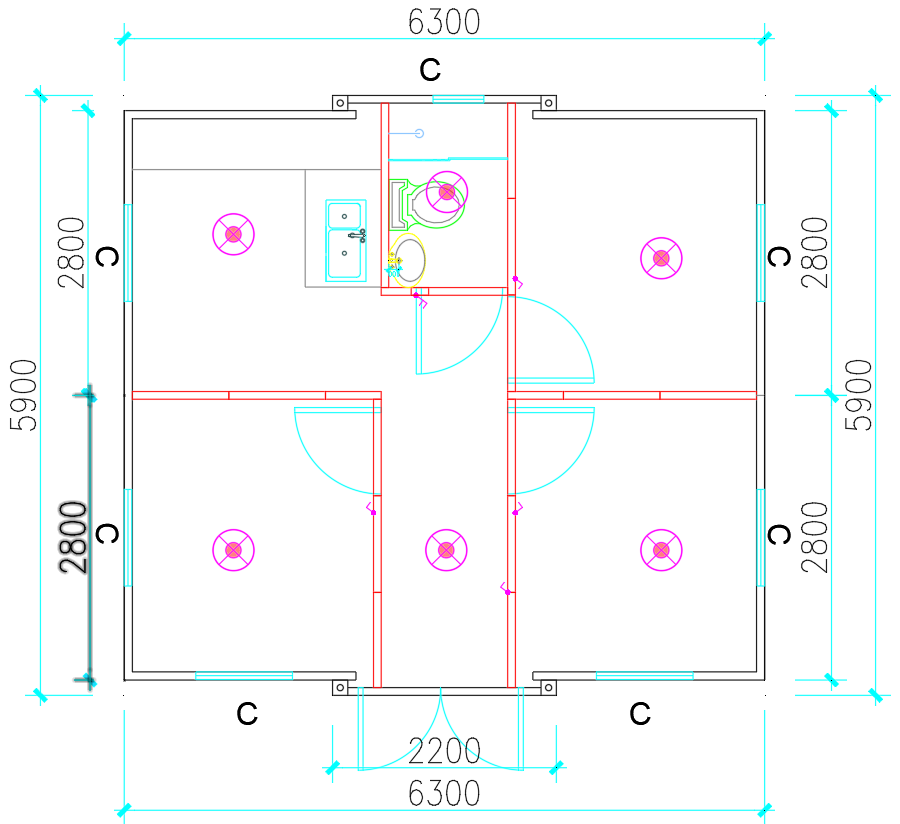

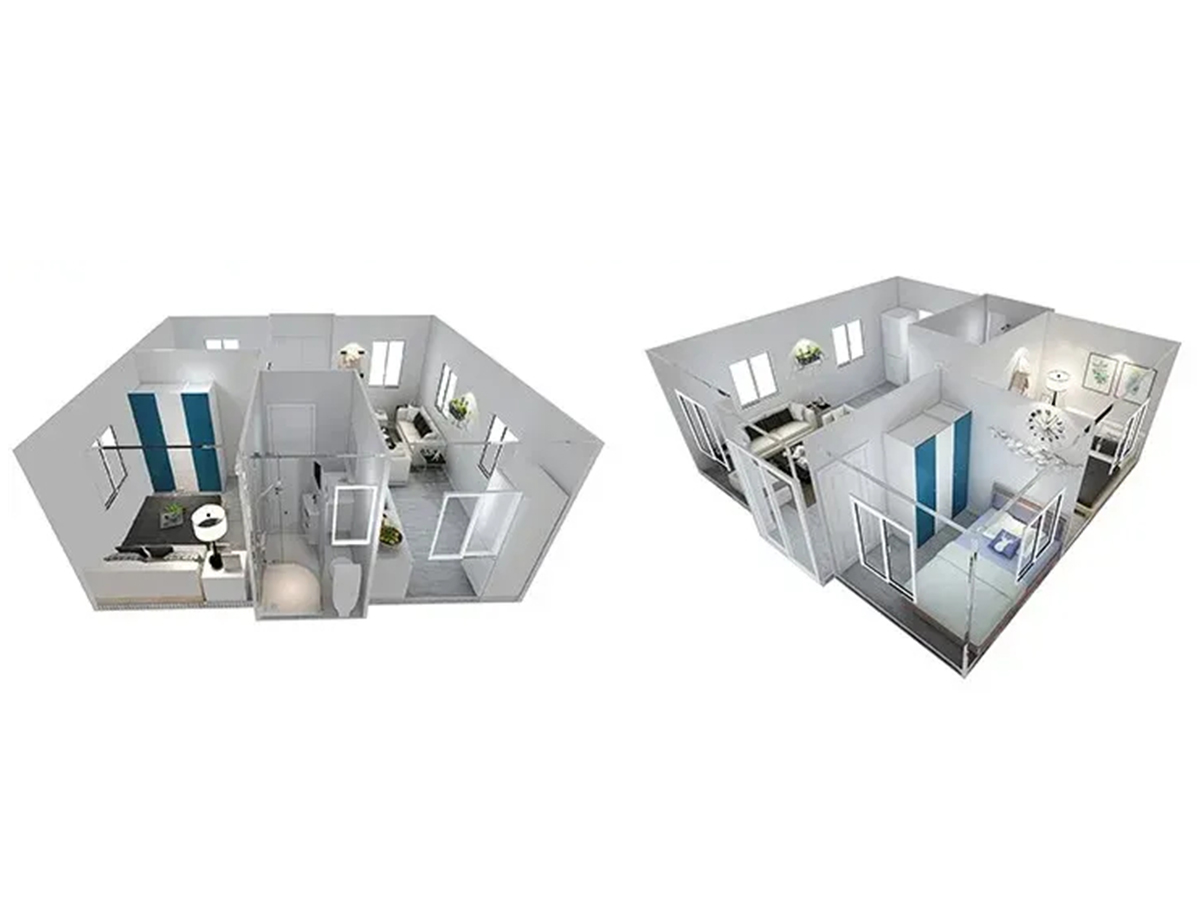

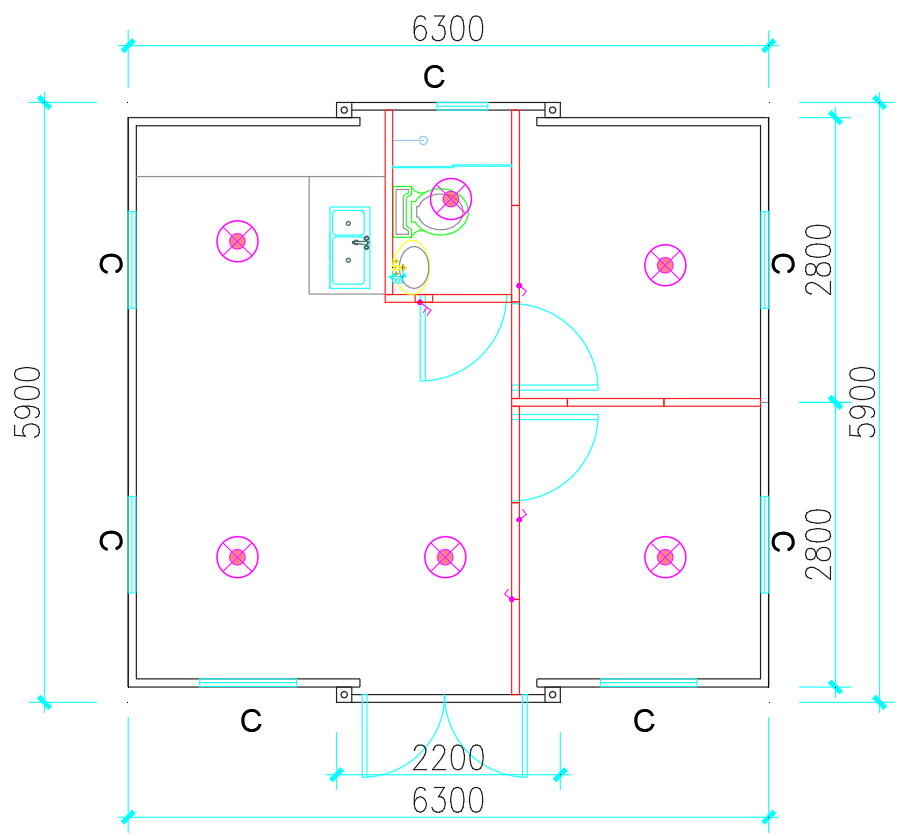

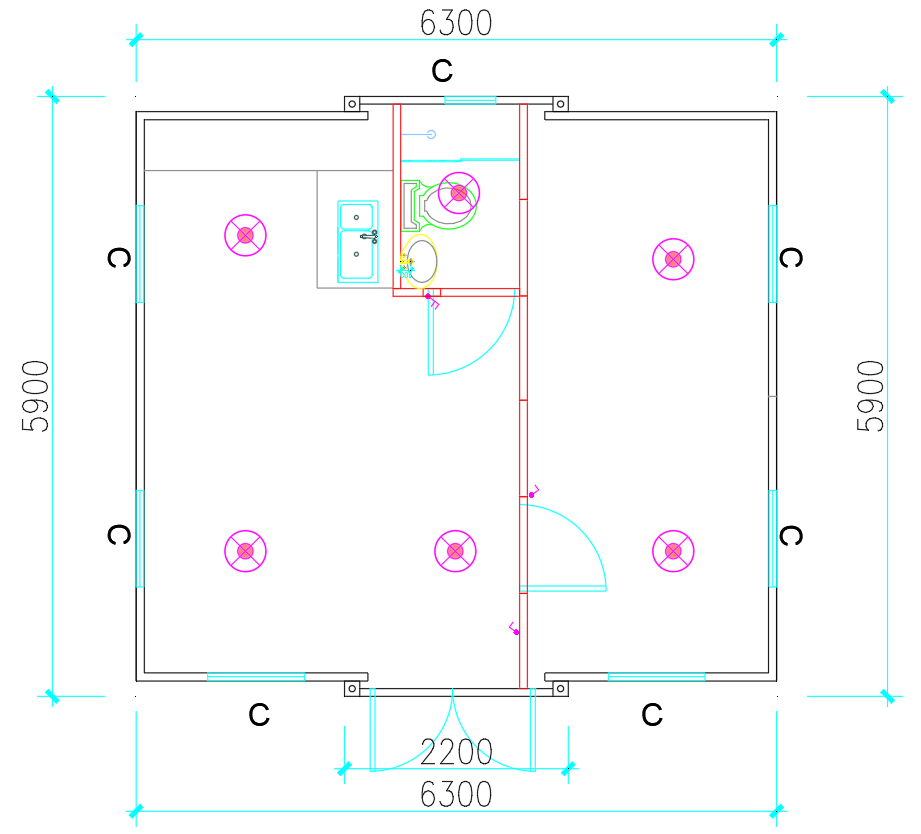

Apartment Type
Apartment Type One bedroom, one living room, one kitchen and one bathroom Two bedrooms, one living room, one kitchen and one bathroom Three bedrooms, one living room, one kitchen and one bathroom
